042N7508 Danfoss COIL 24V 50HZ 9W DIN spade - STOCK CLEARANCE

Danfoss solenoid valves and coils are usually ordered separately to allow maximum flexibility, enabling you to select a valve and coil combination to best suit your needs.

The Danfosscoil program consists of both the easy-to-handle Clip-On system and traditional coils with threaded fastener.

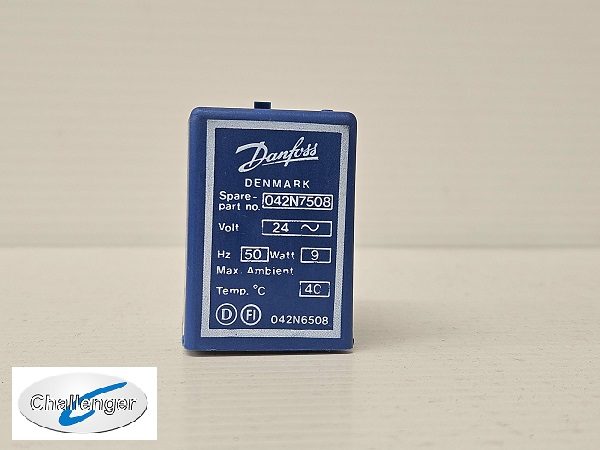

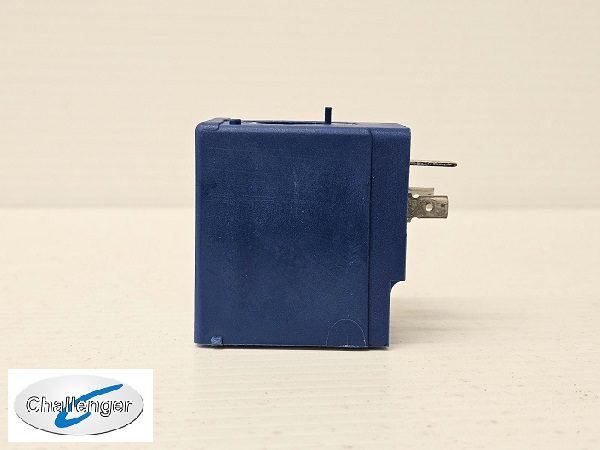

042N7508 Danfoss BA024A coil for non-demanding applications, with IP65, for valve range B, 9W ac / 15Wdc

• Windings of class H insulated wire moulded in the coil body
• Ambient temperature: Up to +40°C
• IP 65 version with mounted cable plug
• Weight: 0.155kg

Coil connection DIN Spade Coil design standard VDE 0580 Coil fastening Nut and snap Coil winding insulation class Class H to IEC 85 Colour Blue Duty rating Continuous EEE category 5 small equipment (any external dimension 50 cm)? Electrical connection DIN Spade Electrical connection size 6.3 mm x 0.8 mm Electrical connection standard EN175301-803 Electrical connector 3 x spades Enclosure rating IP IP00 EU RoHS compliance Yes with exemptions EU RoHS exemption clause 6(b), 6(c) Frequency [Hz] 50 Hz
