Description

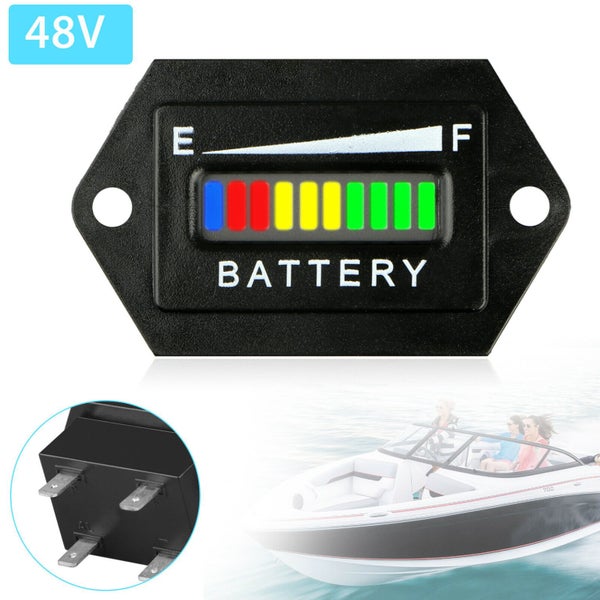

48V Volt Battery Indicator Meter Gauge for Ezgo Club Car Yamaha Golf Cart Motor
Product Features:
- High reliability, low cost and compact size. The battery indicator suitable for lead-Acid battery.
- The battery indicator fit for EZGO, Club Car, Yamaha Golf Carts / Yale, Toyota, Crown Forklifts / Marine Boats and so on.

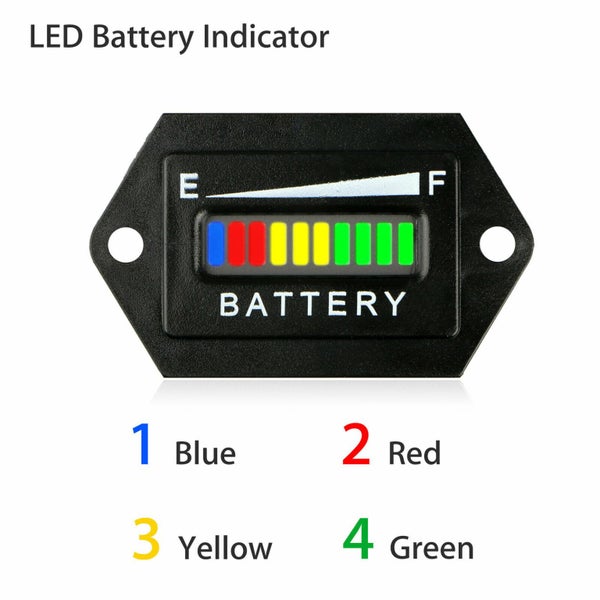

- High reliability & Displayed with 10 segment LED bar graph (2 Red, 3 Yellow, 4 Green and 1 Blue LEDs) display from full to empty and compact size.
- Works with 48V Lead-Acid Batteries in Golf Carts, Forklifts, Trucks, RV's, ATV's, UTV's, Scooters, Boats and More.
How to Use: ""+"Pin: Connect to the battery "+"pole "-"Pin: Connect to the battery "-"pole P Pin:
- Connect to battery "+" pole through key switch
- Rs232 serial com (RX_TTL) AL Pin: 1.Output alarm signal 2.Rs232 signal TX_TTL
Product Specification: Type : Battery Indicator Material : ABS Plastic Capacity : 2 Red, 3 Yellow, 4 Green and 1 Blue LEDs for indicator Operating Voltage : 48V Operating and Storage Temperature : -20 to 85 Operating Current : 5-9 mA nominal Suitable battery : Lead-Acid battery Battery Indicator Accuracy : +/- 0.5 percent Dimension : Housing case 53x32x28 mm, Panel cutting 36x24 mm

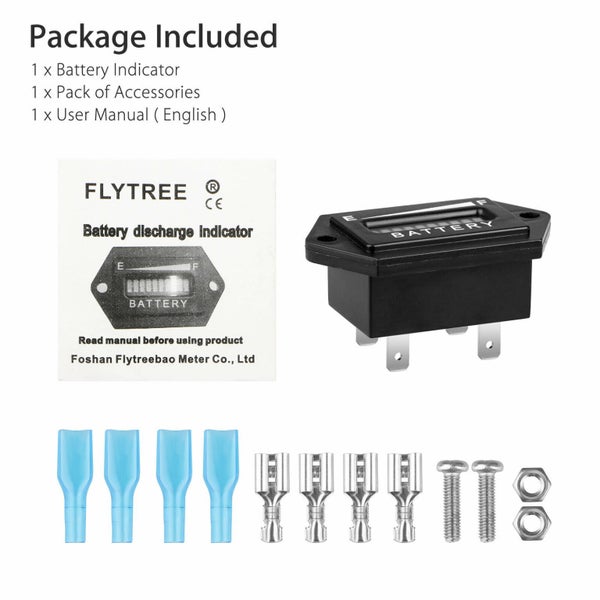

Package Includes: 1 x Battery Indicator 1 x Pack of Accessories 1 x User Manual (English)
