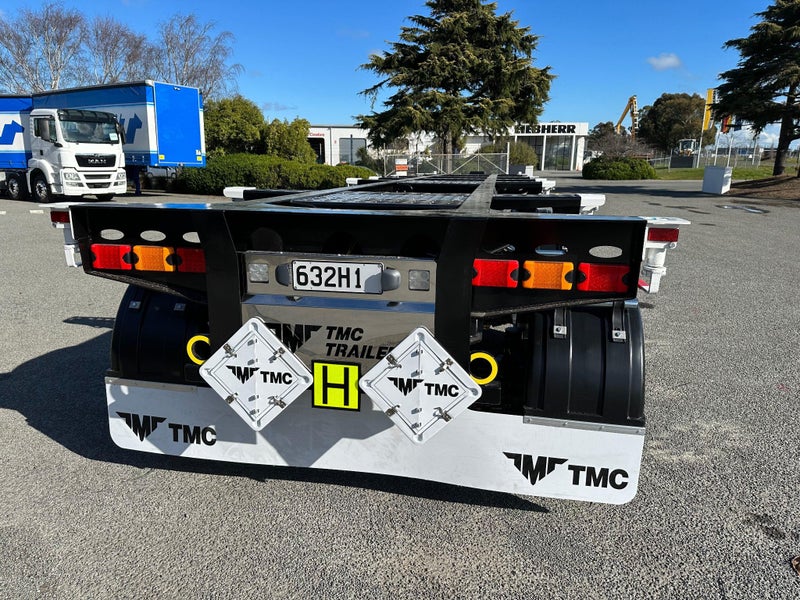

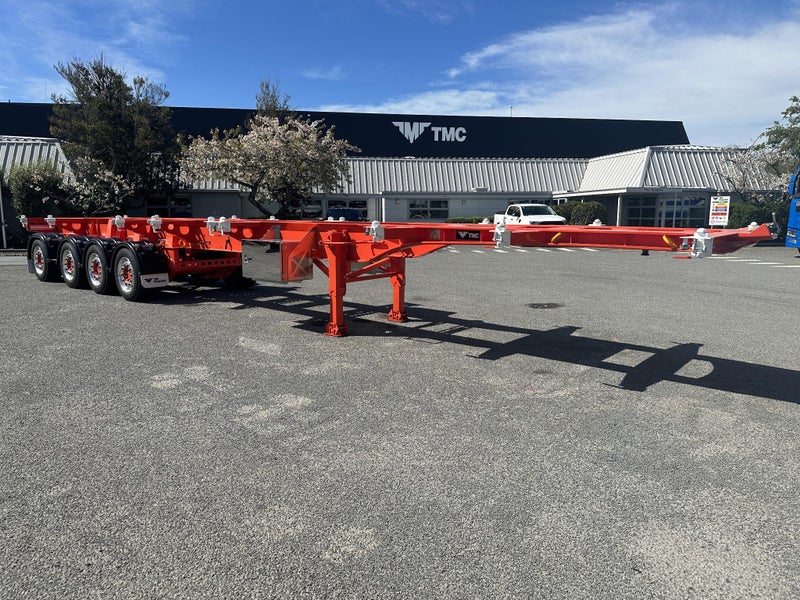

2025 TMC QUAD Axle Skeletal 18 Lock (Dock)

New TMC quad axle skeletal. - 18 Locks (Dock 20' & Dock 40')

SPECIFICATIONS

• Chassis: fabricated from high tensile steel
• Load Restraints: 12 x ISO twistlocks rated at 8,500kg each to suit 1 x 40' optimum, 1 x 20' heavy & 2 x 20' close, 1x40' dock, 1x20' dock container positions. 3 x strengthened sidelifter footpad positions with aluminium shields to avoid chains catching the beam flanges located next to each footpad.
• Axles: ROR CS9 disc brake axles with grease filled hubs, mechanical hubo fitted.
• Suspension: ROR CS9 integrated air suspension with ride height control valves.
• Wheels & Tyres: 22.5x11.75 10/335 forged polished super single alloy wheels fitted to 355/50R x 22.5 tubeless tyres.
• Standing Legs: 50,000Kg static load capacity, 28,000kg lift capacity, 2-speed gearbox.
• Brakes: Multi-volt electro-pneumatic WABCO brand EBS system roll stability control system.
• Guards/Flaps: Full plastic guards fitted to adjustable saddles. Heavy duty rubber mudflaps.
• Electrics: Full Hella LED multi-volt lighting system, sealed 7 core wiring loom with IP67 rated connectors.
• Finishing: All steel-work is media blasted to 30 microns, primed and painted with a PPG 2-pack paint process.
• Free Service Check: To ensure the full TMC warranty cover, a 5000km service check is provided free of charge to be performed at either TMCs Auckland, Hamilton or Christchurch service facilities or an approved service provider.
• Compliance: All certification NZTA requirements including SRT, COF, twelve months registration and 1000km RUCs issued prior to delivery. HPMV permit application logged on behalf of client if required.

Taking orders now.

Note this is for an 18 lock skeletal, please see the other listing for a 12 lock skeletal

Keywords: skeletal, skel, container trailer, skelly, 4 axle skelly, skelie

Why purchase from TMC?

• Over 75 Years experience manufacturing heavy transport trailers
• 4500+ trailers delivered to New Zealand customers
• The largest support network of any trailer manufacturer in New Zealand, with our own workshops in Auckland, Hamilton & Christchurch.
• Commitment to quality and after sales service
• An in-house design team using the latest 3D CAD and Finite Element Analysis software. Able to provide permit documentation, LT400 repair certification and swept path analysis
• Realistic and reliable delivery dates
• Delivery to any location in New Zealand.

Although every reasonable effort has been made to ensure the accuracy of the information contained on this ad, absolute accuracy cannot be guaranteed.
