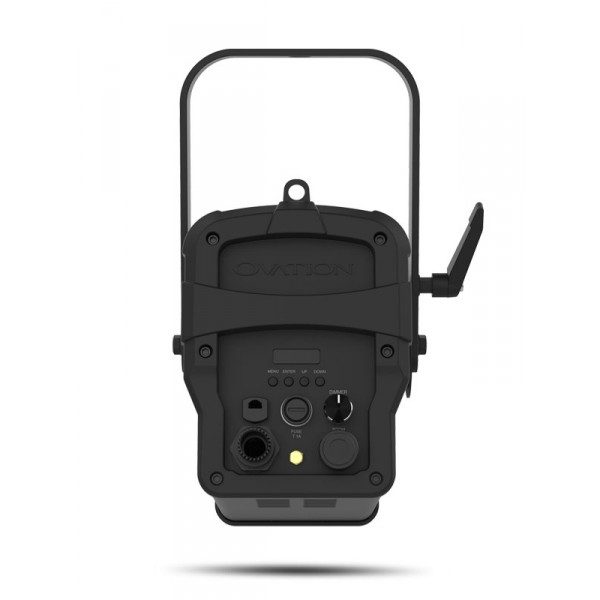

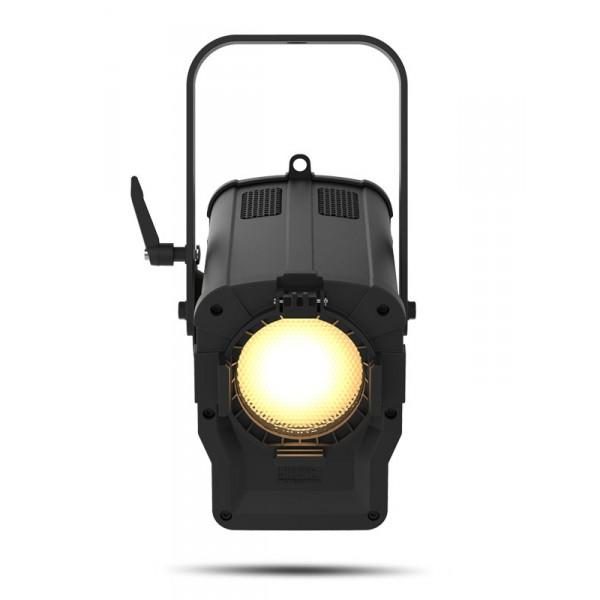

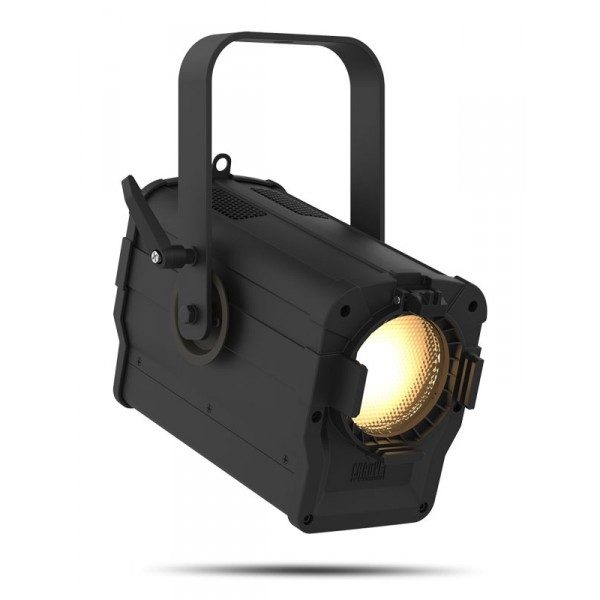

Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. It projects a bright, beautifully soft field of light within a 30°- 69° field angle controlled by a manual zoom.

FEATURES

Compact warm white Fresnel for tight spaces and on-location lighting 16-bit dimming resolution for smooth fades Flat, even field of light Virtually silent operation for use in any situation Manually controlled variable zoom angle between 30° to 69° Power and Current:33 W, 0.3 A @ 120 V, 60 Hz 27 W, 0.2 A @ 230 V, 50 Hz Weight:(with legs): 5.1 lb (2.3 kg) (with chains): 4.8 lb (2.2 kg) Size:(with legs): 17.5 x 17.5 x 30.5 in (445 x 445 x 775 mm) (with chains): 11 x 11 x 29 in (280 x 280 x 737 mm) Approvals:CE

OPTICAL

Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy Color Temperature (at full): 3200 K CRI: 91 Beam Angle: 18° to 56° Field Angle: 30° to 69° Zoom Angle: 30° to 69° Lumens (30°): 1,920 Lumens (69°): 795 Illuminance (30°) : 279 lux @ 5 m Illuminance (69°): 100 lux @ 5 m

DYNAMIC EFFECTS

Dimmer: Electronic Shutter/Strobe: Electronic Zoom: Manual Strobe Rate: 0 to 30 Hz Standalone Color Mixing: No Color Temperature Presets: No Dim Modes: 4 Built-in Automated Programs: No Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz
