RAM Marine Humminbird / Lowrance "LIGHT USE" Electronic Mount - Composite

RAP-B-107U RAM(R) Composite Fishfinder Mount for Humminbird Devices

Features

• Complete flat surface, drill-down mounting solution for Humminbird, Lowrance and Raymarine devices with an overall height of 127mm
• Includes quick release B size ball adapter for Lowrance marine electronics, double socket arm, and round plate with 1" B size ball
• RAM(R) Mounts ball and socket technology allows for near-infinite adjust-ability
• Made of Powder Coated Marine Grade Aluminium and High strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

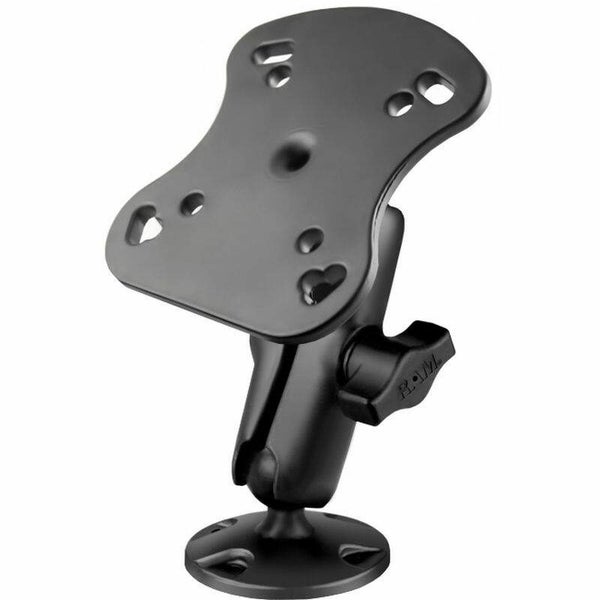

The RAP-B-107U consists of a 63mm composite diameter round base with the universal AMPs hole pattern, composite 94mm double socket arm and connecting Humminbird / Lowrance / Raymarine marine adaptor base. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles.

The RAP-B-107U is a "LIGHT USE" mount, designed to hold smaller marine electronic devices for a "RUGGED USE" version see RAM-107U

Compatible Devices

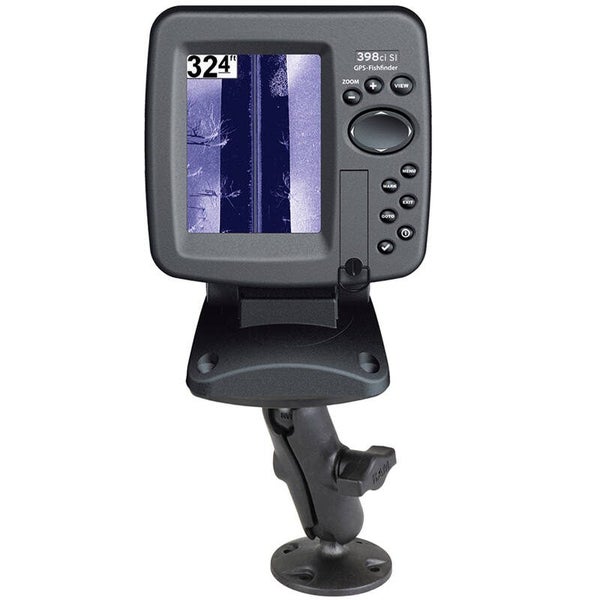

Humminbird 700 Series 600 Series 500 Series 300 Series 100 Series Matrix Series (excluding Matrix 97)

Lowrance Elite-5 Elite-5M Elite-5X

Raymarine Apelco Fishfinder with matching hole pattern

Overall Height: 127mm (5")

Arm Dimensions: Overall Length: 94mm (3.69") Socket-To-Socket Length: 76mm (3")

Round Plate Hole Pattern 4-Hole AMPS: 1.181" x 1.496"

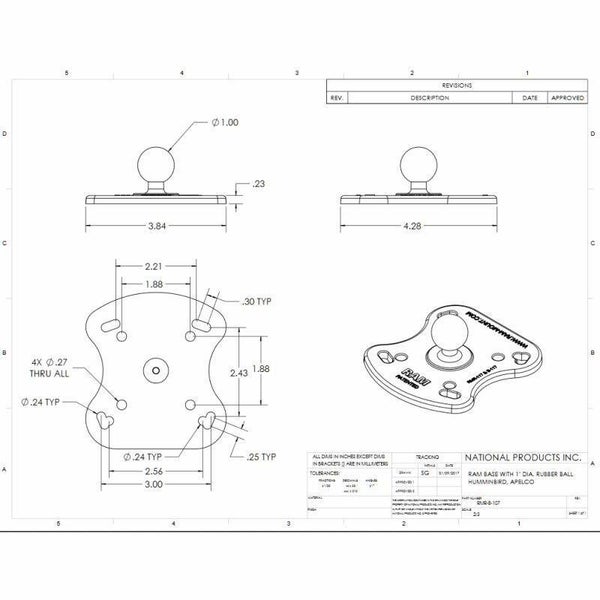

Adaptor Hole Pattern See Drawing

Plate Size Fishfinder Plate: 107.95mm x 91.69mm (4.25" x 3.81") Round Plate: 63.5mm (2.5") Diameter

Ball/Socket Size B Size (1")

Weight Capacity Standard Use: 907 grams (2 lbs) Heavy-Duty Use: 454 grams (1 lb)

Weight

286 grams / 0.63 lbs

Materials Marine-grade aluminium (Marine mount) High strength composite (arm and b...
