RAM Marine Swing Arm with Round base - 152mm Arm with Socket

RAM-VB-109-5U RAM(R) 6" Single Swing Arm with Socket & Ball

Features

• 152mm (6") swing arm extension with socket and round plate with 4 and 3 hole AMPs patterns
• C Series 1.5" ball and socket supports devices up to 1.814kg (4 lbs)
• Made of powder-coated, marine-grade aluminium
• Backed by a lifetime warranty

The RAM-VB-109-5U consists of a 152mm (6") long single swing arm and 2.5" round base that contains the universal AMPs hole pattern.

Hardware Included

(1) 3/8"-16 x 4" Hex Bolt (1) 2" Rubber Washer (1) 1.25" Fender Washer (2) Steel Washers (1) Thrust 6-Bearing Washer (1) 3/8"-16 Knob

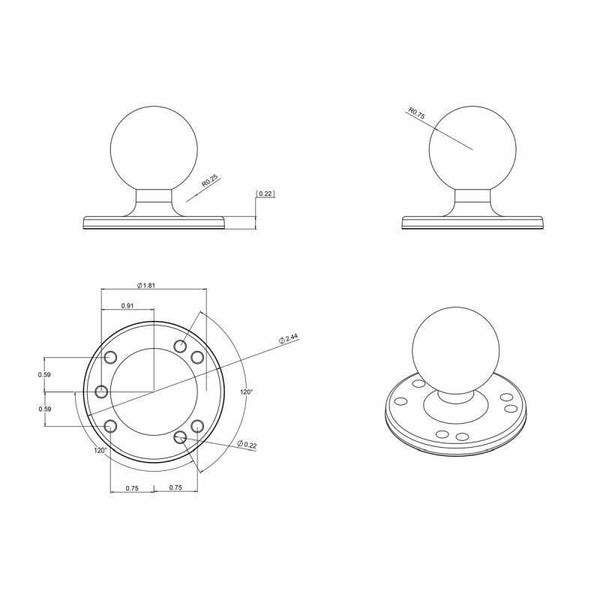

Product Dimensions

Swing Arm Length: 152mm (6")

Hole Patterns: 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) 3-Hole AMPS 120- Degree 1.812" (46.0mm)

Plate Size 63.5mm (2.5") Diameter

Ball/Socket Size C Size (1.5")

Weight Capacity Standard Use: 1.814kg (4 lbs) Heavy-Duty Use: 1.36kg (3 lbs)

Materials Marine-grade aluminium
