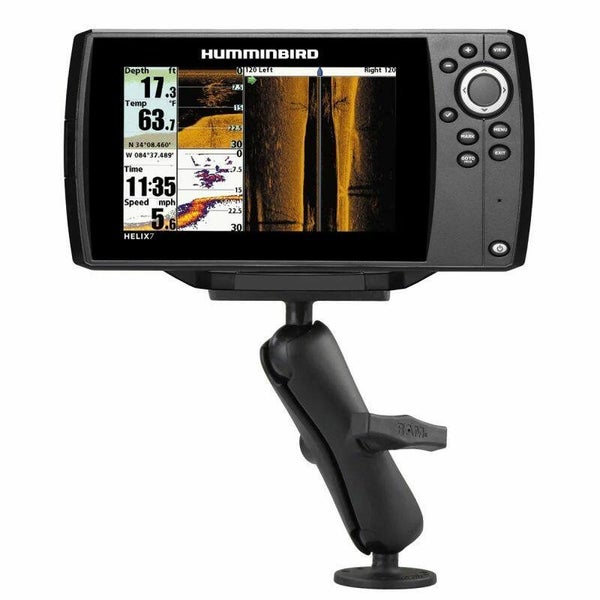

RAM Marine Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

RAM-202-24-202U RAM(R) Drill-Down Double Ball Mount for Humminbird Helix 7 - Medium

Features

• Rectangular plate features a 4-hole pattern which will fir Humminbird Helix 7
• Included C size medium 143mm double socket arm
• Round 63.5mm plate is ideal drill down base and incorporates the universal AMPS hole pattern

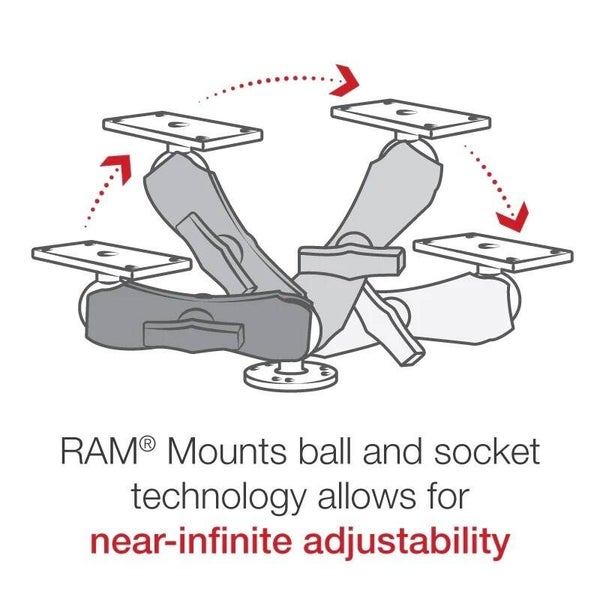

• RAM ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

The RAM-202-24-202U, powder coated marine grade aluminium mount, consists of a medium double socket arm mount, one round 2.5" diameter round base with the universal AMPS hole pattern and one 2" x 4" rectangular base. The unique rubber ball and socket technology dampens shock and vibration while offering high adjustability to achieve the perfect viewing angle.

The rectangular plate contains a 1.5" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 38.1mm x 88.9mm (1.5" x 3.5") centre to centre. Overall plate dimensions are 50.8mm x 101.6mm (2" x 4")

The round plate consists of a 1.5" diameter rubber ball connected to a flat 63mm / 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

Compatible Devices (Include)

Humminbird Helix 7 Humminbird Helix 7 G4N

Specs & Features

Rectangular Plate Hole Pattern 38.1mm x 88.9mm (1.5" x 3.5")

Rectangular Plate Size 50.8mm x 101.6mm (2" x 4")

Round Plate Hole Patterns 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) 3-Hole AMPS 120- Degree 1.812" (46.0mm)

Arm Dimensions: Overall Length: 143mm (5.625") Socket-To-Socket Length: 114mm (4.5")

Ball/Socket Size C Size (1.5")

Materials Marine-grade aluminium

Weight Capacity Standard Use: 1.814kg (4 lbs) Heavy-Duty Use: 1.36kg (3 lbs)

Components: RAM-202U-24 RAM Ball Base with 1.5" x 3.5" 4-Hole Pattern R...
