RAM Marine Humminbird / Lowrance / Raymarine Composite Electronic Mount
Description
RAP-107U RAM(R) Composite Double Ball Mount for Humminbird, Matrix + More
Features
- Complete flat surface, drill-down mounting solution for Humminbird, Lowrance and Raymarine devices with an overall height of 187mm
- Includes quick release B size ball adapter for Lowrance marine electronics, C size double socket arm, and round plate with 1" B size ball
- RAM(R) Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder Coated Marine Grade Aluminium and High strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

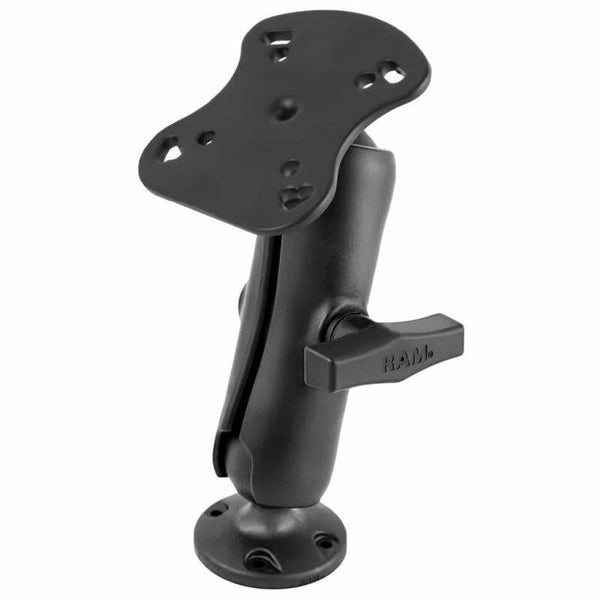

The RAP-107U consists of a composite 2.5" diameter round base with the universal AMPS hole pattern, composite double socket arm, and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles.
Note: The RAP-107U is a "rugged use" mount, designed to hold large marine electronic devices. For a "Light Use" version see RAM-B-107U
Compatible Devices
Humminbird 700 Series 600 Series 500 Series 300 Series 100 Series Matrix Series (excluding Matrix 97)
Lowrance Elite-5 Elite-5M Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern

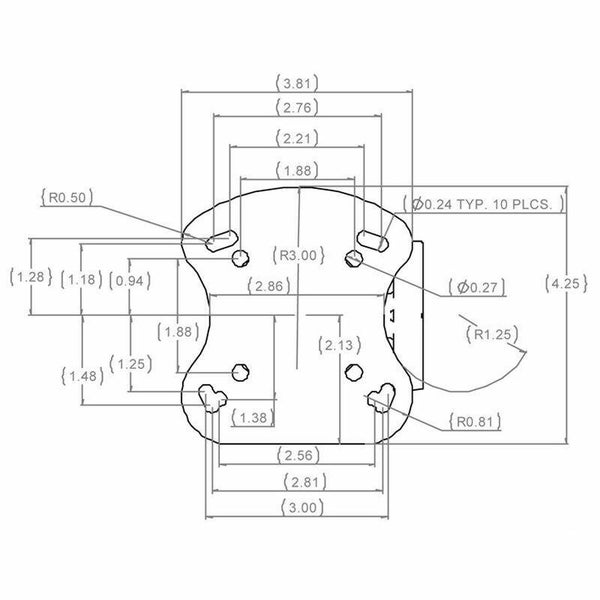

Round Plate Hole Pattern 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm) See Drawing
Overall Height 186.7mm (7.35")
Arm Dimensions: Overall Length: 143mm (5.625") Socket-To-Socket Length: 114mm (4.5")
Ball Size: 1.5" Rubber Ball Size
Material: Marine-grade aluminum High strength composite
Weight: 0.499kg (1.1 lbs.)
Weight Capacity Standard Use: 1.814kg (4 lbs) Heavy-Duty Use: 1.36kg (3 lbs)
Components: RAP-201U RAM Composite DOUBLE SOCKET ARM FOR 1.5" BALL RAP-202U RAM 2.5" DIA.BASE W 1 1/2" BALL RAM-107BU RAM BASE FOR HUMMIN...
