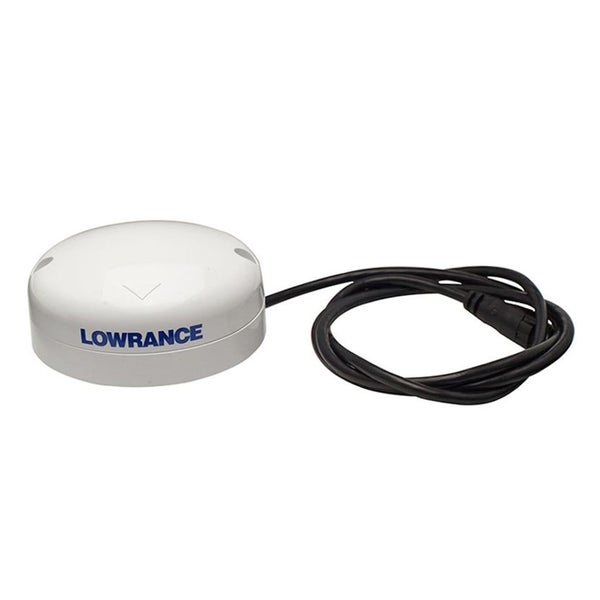

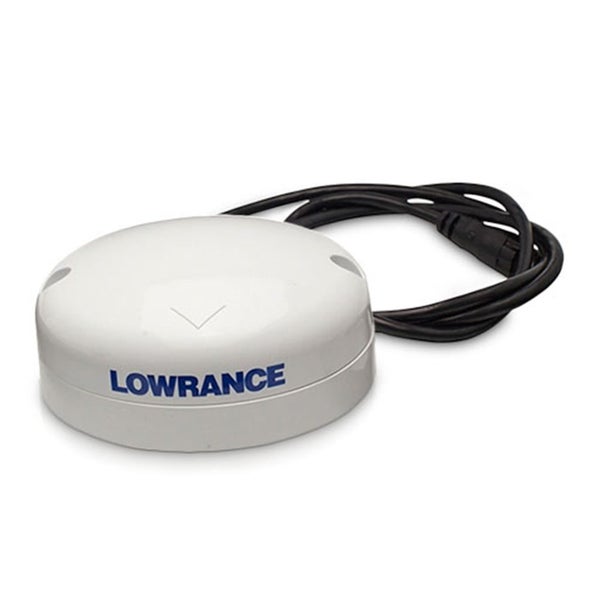

Lowrance Point 1 GPS Antenna

The Lowrance Point 1 GPS antenna is a precision GPG/Glonass receiver with an electronic compass. Excellent addon for your GPS or MFD (multi function display), adding speed and accuracy.

Ideal as a position and heading device, the Point-1 provides extremely accurate and rapid boat position and speed updates. In addition - unlike other position-only antennas, Point-1 provides heading for accurate boat direction at any speed and for radar/chart overlay.

Easily connects to any HDS Gen2, HDS Gen2 Touch or Elite-7 display or any NMEA 2000(R) network. Point-1's are fully waterproof and can be pole or surface mounted on any boat.

Lowrance Point-1 GPS Antena Key Features:

• NMEA 2000(R) position and heading sensor
• Supports GPS and GLONASS, Galileo-capable with future software update
• Supports SBAS including WAAS/EGNOS/MSAS
• 10 Hz updates for smooth and accurate location
• Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds
• Compact, rugged design for all marine environments and fully waterproof
• Includes spat/pole mount
• Not recommended for use with MARPA functionality of Radar

Point-1 GPS Antena Specifications:

• N2K PG Ns 126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257
• NMEA connectivity: 1x NMEA 2000 Micro-C port, 2 LEN
• Approvals compliance CE under RED 2014/53/EU directive
• Consumption max: 2w
• Typical consumption: <2w
• Supply voltage: 9V DC - 18V DC
• Humidity: 40oC, 93% RH, operating
• Operating temperature range: -25oC to 60oC (-13oF to 140oF)
• Storage temperature range: -40 to + 85oC (-40 to + 185oF)
• Waterproofing: IPX7
• GPS correction: DGPS, WAAS, EGNOS, GLOANASS, MSAS, Galileo
• GPS Receiver Channels: 32 channels
• Position Accuracy: 3m (9.8 feet)
• Time to first fix: 3s (cold start 50 seconds)
• U...
