CM Marine - BEP Marine 701-PM Panel Mount Battery Switch

CM Marine - BEP Marine 701-PM Panel Mount Battery Switch

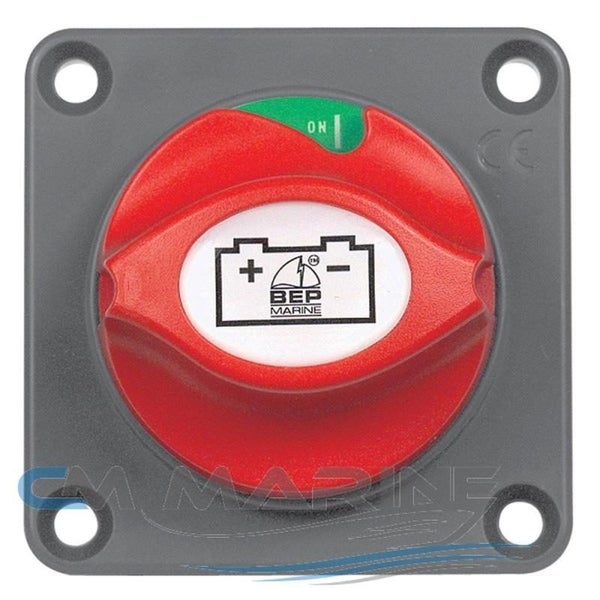

The BEP 701PM Panel Mount Battery Switch Single Battery Bank is the latest addition to the panel mount range of battery switches. This one is specifically designed for panel mount applications. This battery switch is moulded in a high strength, fibre reinforced plasic with high temperature performance and great resistance to chemicals that damage other plastic types.

BEP 701PM Panel Mount Battery Switch Features:

• Fits standard BEP battery switch label range.
• Removable key
• CSK recessed for surface mount application
• Standard 2 1/16" hole cut out (Same as standard gauge hole)
• Ignition Protected
• Full access for cables with no restrictions
• Fit into Contour Connect Panel
• Waterproof

BEP 701PM Panel Mount Battery Switch Specifications:

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking (Peak) Rating: 1250 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On/Off
• Mounting: Recessed or Surface
• Ignition protected
• Termination Stud Size:
• 2 x 10 mm (3/8 inch)
• Dimensions: 69 x 69 x 75h mm (2.75 x 2.75 x 3h inches)

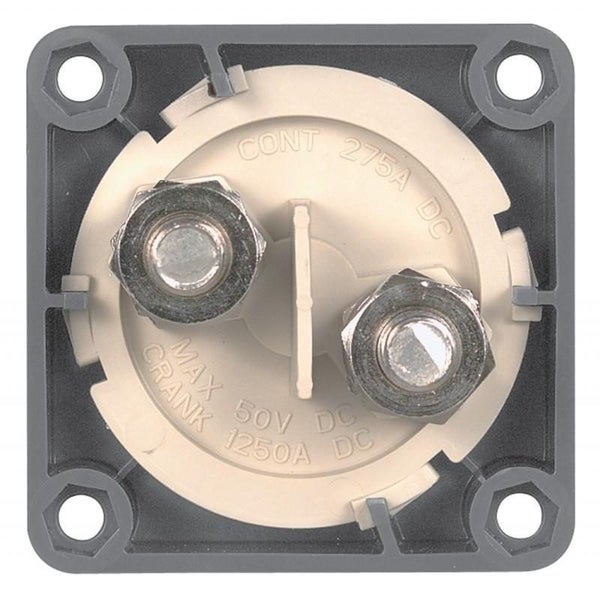

• Tin plated copper studs and nuts
