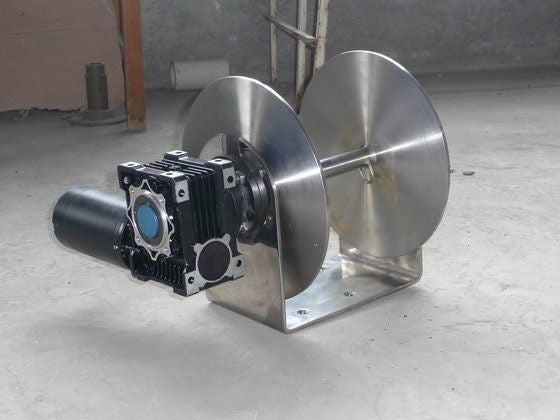

Drum winch NYS YDW-011 600W 12V
Description
Drum winch NYS YDW-011 600w 12V
Quality NYS branded drum winch
Check out other brands performance specifications & compare to NYS performance we out perform most even when they have larger motor’s
High quality 316 stainless steel mirror finish on Drum and bracket
Check out our Webb site (Same name as our trademe name) and see complete range of spare parts we carry in stock for after sale service. Do other windlass carry comprehensive spares?

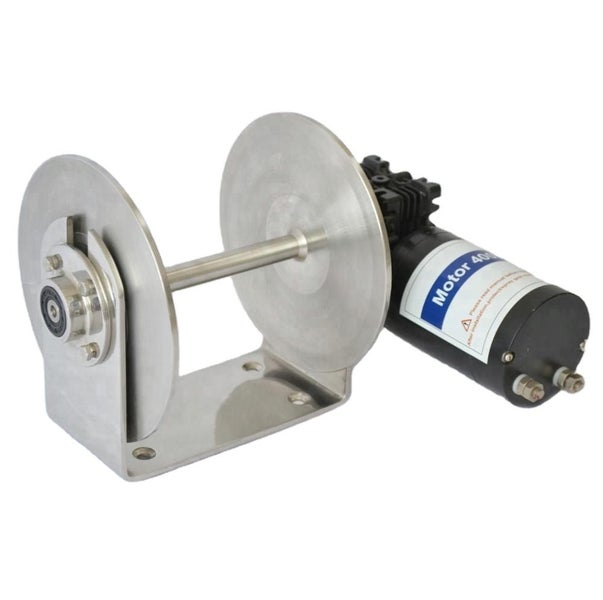

This is the slightly larger but more powerful than our 400w Drum winch in Physical size and will fit in small anchor wells
Modular design incorporating precise gearbox alignment
Rope recommendation 6mm x 100meters (We stock this rope and chain section)
Heavy duty dual direction motor designed for marine winches
The fully sealed gearbox is driven by a vertically driven permanent magnet motor
Gearbox housings are marine grade alloy and 316 stainless drum & Bracket
The motor can be mounted at 30, 45 and 90 degrees for easier installation
Input power 12V
Motor 600W
No load absorption 40A
Maximum load 70A
Working load 90KG
Maximum working load 190kg
Maximum pull 600KG
Maximum speed 30m/Min
ISO9000 company producing NYS windlass since 2004
COMPLETE WITH THE FOLLOWING Drum winch
Up down switch
Reversing solenoid
Circuit breaker

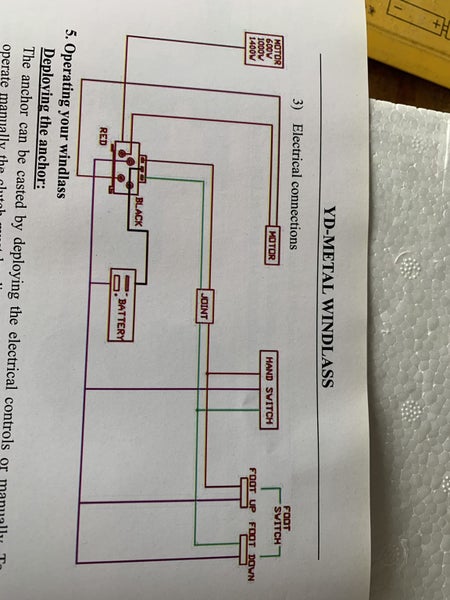

Wiring diagram
Below warranty for non-commercial use
3 Year warranty on hardware 1 year warranty on electrical Pick up in Hunua by appointment only
Picking up is between 9am and 3 pm Working days by appointment only.
Questions & Answers
Hi , could you please advise dimensions of the mounting plate and also the drum size , just want to make sure it will fit in the anchor well. Also do you know if the motor can be moved to different positions Thanks mrkook1 (16 • 7:39 pm, Wed, 4 Mar )Hi Drum only is 240mm Plate is 140x240mm Motor can move around. You would be best to look at photo 3 as it has all dimensions on. Cheers tgh-marine (7569 • Wednesday, 4 March 2026 )
