Windlass vertical anchor winch NYS 400W SS 316 6mm
Description
NYS 400W low profile anchor windlass winch
3 Year NZ registered company backed warranty on all hardware. 1 year NZ registered company backed warranty on all electrical
Rope recommendation 12mm three strand nylon (We stock this rope)
Chain Gypsy 6mm
Photo of rope and chain is for illustration only and not included in this listing however we do stock these kits
Heavy duty dual direction motor designed for marine winches
Check out other winches performance & compare to NYC performance
Check out our Webb site (Same name as our trademe name) and see complete range of spare parts we carry in stock for after sale service. Do other windlass carry comprehensive spares?
Input power 12VDC
Motor 400W
Working load 30A
Maximum load 125KG
Maximum pull 420KG
Line speed 30m/min
To fit Deck minimum thickness 22mm Maximum 41mm
Modular design incorporating precise gearbox alignment in multiple directions,
ISO9000 company producing NYS windlass since 2004

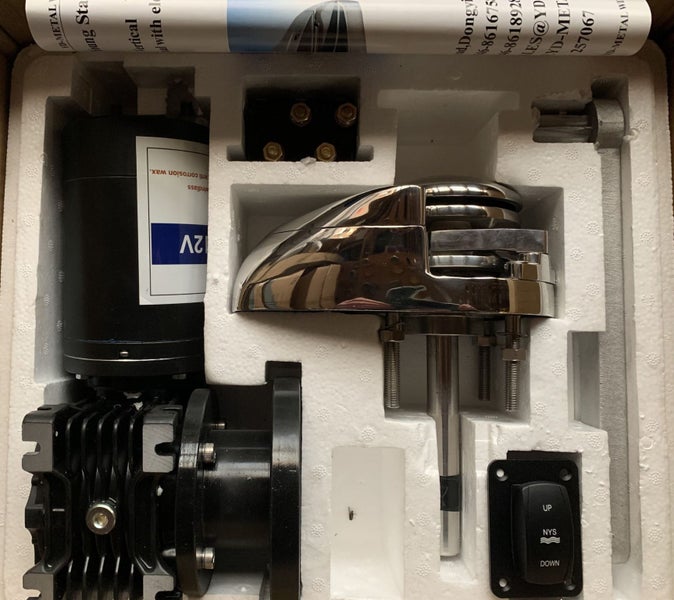

COMPLETE WITH THE FOLLOWING
Windlass
Up down switch
Reversing solenoid
Clutch handle

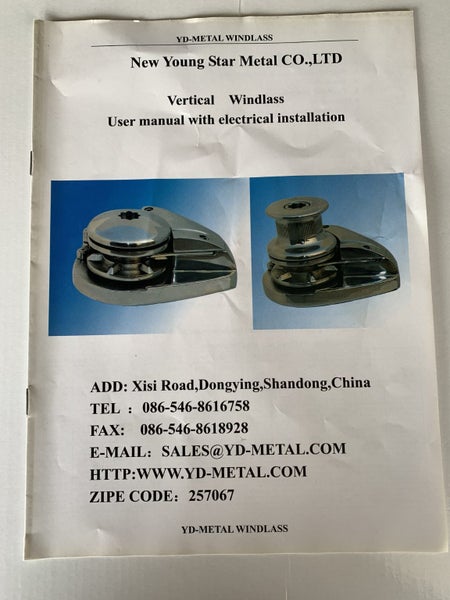

User manual
warranty for non-commercial use
Pick up is by arrangement only in Hunua
Picking up is between 9am and 3 pm Working days by appointment only.
Questions & Answers
What size boat is this rated for granted (911 • 7:09 pm, Wed, 4 MarUp to 5 meters tgh-marine (7569 • Wednesday, 4 March 2026
