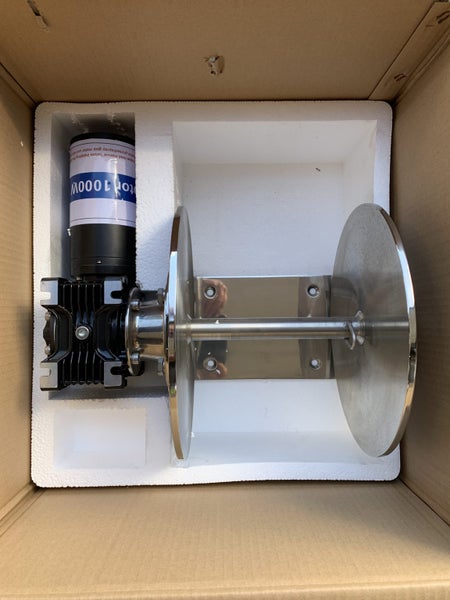

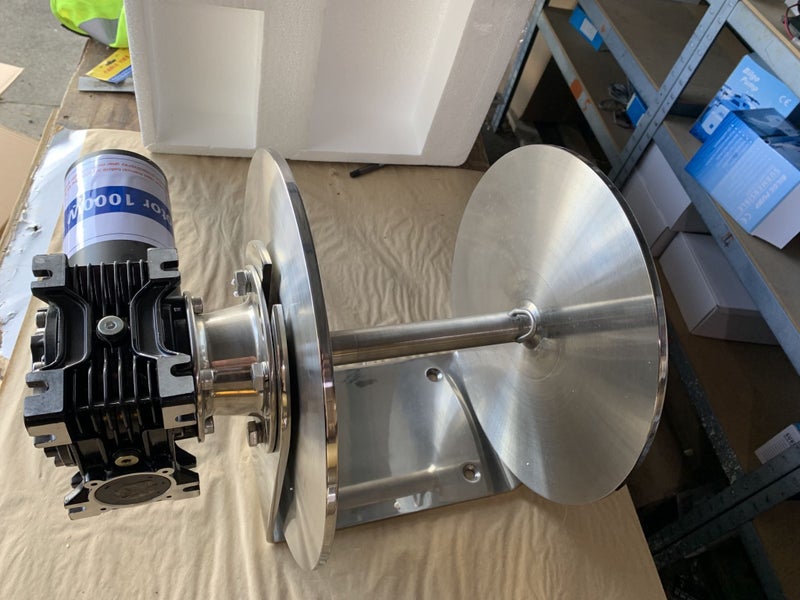

Drum winch NYS YDW-012 1000W 12V
Description
Drum winch NYS YDW-012 1000W 12V Quality NYS branded drum winch Check out other brands performance specifications & compare to NYS performance. NYS out perform most even when they have larger motor’s
High quality 316 stainless steel mirror finish on Drum and bracket
This is the larger and very powerful 1000w Drum winch
Modular design incorporating precise gearbox alignment
Rope recommendation 8mm x 105 meters & chain
Heavy duty dual direction motor designed for marine winches
The fully sealed gearbox is driven by a vertically driven permanent magnet motor
Gearbox housings are marine grade alloy and 316 stainless drum & Bracket
The motor can be mounted at 30, 45 and 90 degrees for easier installation
Input power 12V
Motor 1000W
No load absorption 60A
Maximum load 100A
Working load 120KG
Maximum working load 350KG
Maximum pull 750KG
Retrieve 25 meters minute
ISO9000 company producing NYS windlass since 2004
COMPLETE WITH THE FOLLOWING Drum winch
Up down switch
Reversing solenoid
Circuit breaker
Wiring diagram
Deck switch x two
Below warranty for non-commercial use
3 Year warranty on hardware 1 year warranty on electrical Pick up in Hunua by appointment only
Picking up is between 9am and 3 pm Working days by appointment only.
