Audi / VW 2.0L TFSI Rebuild Kit with Carrillo Conrods and CP Forged Pistons

Description

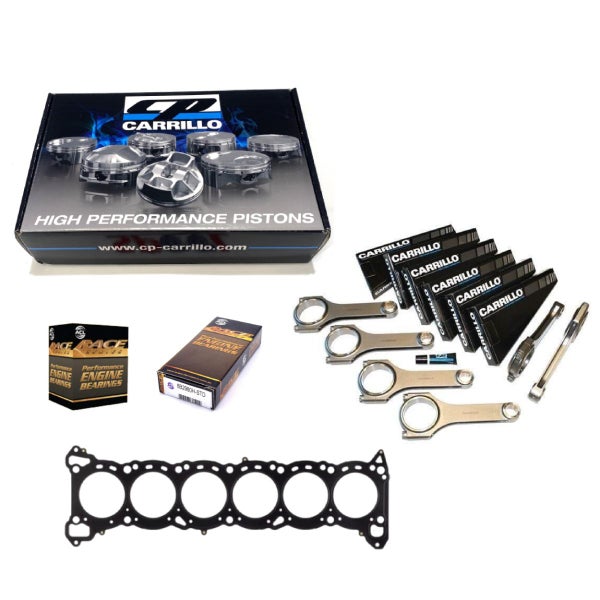

This Rebuild Kit includes the following quality parts:

CP Carrillo Conrods, Pro H-Beam or Pro H-Beams with CAR Bolts,
CP Forged Pistons (Rings, Pins and Locks Included)
Cometic MLS Head Gasket .051" (1.3mm)
ACL Race Series Main Bearings - STD, 0.025 or 0.25mm
ACL Race Series Big End Bearings - STD, 0.025 or 0.25mm

Pistons are available in:

Compression Ratios: 9.5:1/li>
Bore Sizes: STD, 83mm and 83.5mm
Pistons come with rings, gudgeon pins and pin locks

Carrillo Connecting Rods Feature:

CP-Carrillo uses a proprietary steel to manufacture its connecting rods, named Carrilloy. It is a chrome, nickel, moly, vanadium alloy which meets all VAR (vacuum arc re-melt ASTM standards). Carrilloy is simply a modification of an existing SAE specification. We just tighten up the acceptable attributes of the heat as it is manufactured. The heat is validated, both by the supplier and an independent metallurgist whom confirm the desired physical and chemical properties of steel.

CP Pistons standard features include:

5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
Deep valve reliefs accommodate high lift camshafts
Larger valve reliefs for +1mm valve sizes
Custom skirt cam and barrel design
Accumulator grooves
High strength aluminium forgings
High performance rings
Fully CNC machined and balanced to +/- 1 gram
Wrist pins included
Double pin oilers force fed from oil ring groove
Pick lock grooves for easy lock removal
Pin fitting included

Note: We recommend Joe Gibbs Break in Oil for all new engines.

Where different options are described above, please let us know what option you would like. Some options have additional costs please ask us for a price.

/r/n/r/n

All pistons and conrods are priced as a set. Pistons come with Rings, Pins and Locks. Conrods come with ARP2000 Bolts.

/r/n/r/n

Please allow up to 7 ...
