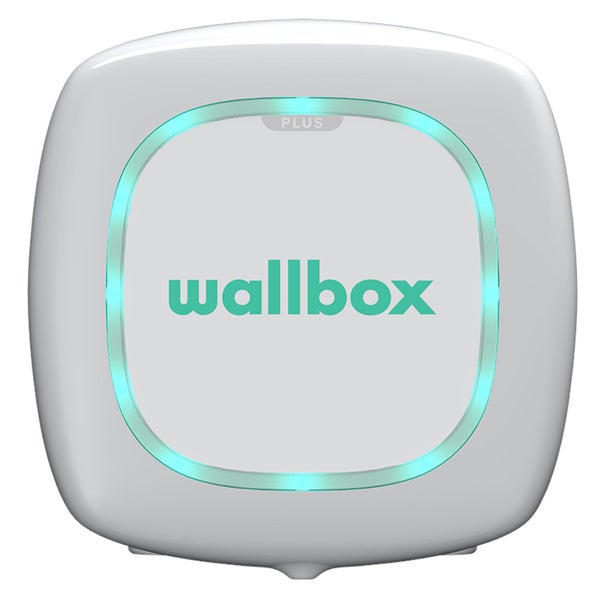

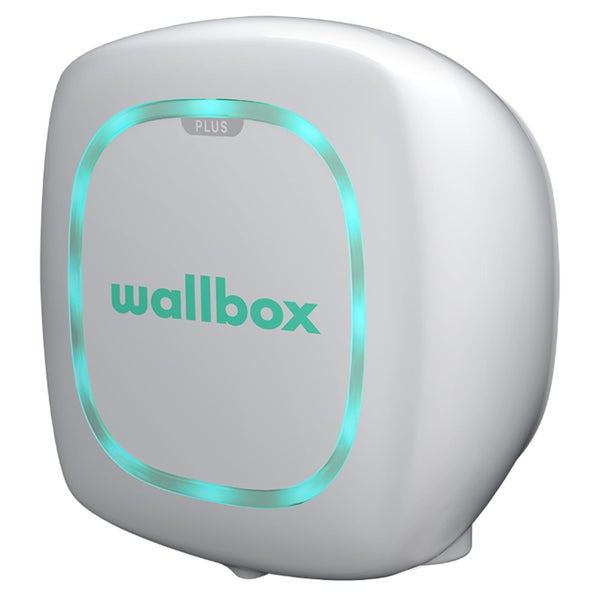

Wallbox Pulsar Plus EV Electric Vehicle Charger - Type 2 - 7M - White

Wallbox Pulsar Plus EV Electric Vehicle Charger - Type 2 - 7M - White

This listing is for: 1 x Wallbox Pulsar Plus EV Electric Vehicle Charger - Type 2 - 7M - White

Everything you need for smart EV charging at home!

Features: Pulsar Plus is universal. Compatible with any vehicle and electrical installation. Comfort is important. The Pulsar Plus comes with a connector support included. Integrated DC leakage protection. Local and remote lock/unlock. Control your energy consumption. Includes Bluetooth and WiFi connection. Easy to install, easy to use, easy to enjoy. The most compact design on the market with the maximum efficiency. Very small, very effective. Scheduling of the charging sessions. Allows to charge when the energy costs are the lowest. Manual power adjustment from the App.

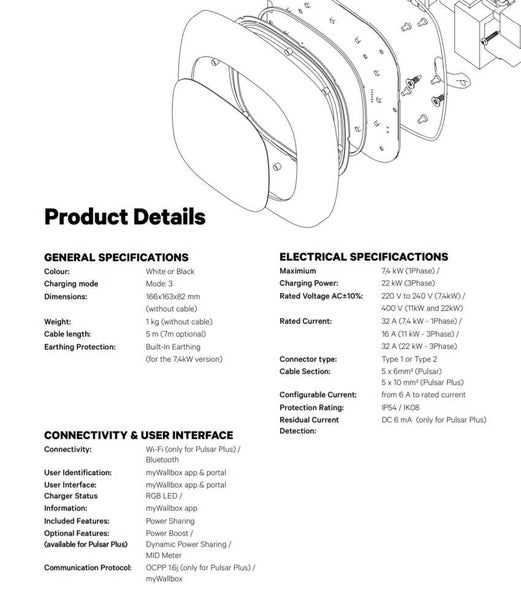

GENERAL SPECIFICATIONS Colour: White or Black Charging mode Mode: 3 Dimensions: 166x163x82 mm (without cable) Weight: 1 kg (without cable) Cable length: 7 m Earthing Protection: Built-In Earthing (for the 7,4kW version)

ELECTRICAL SPECIFICACTIONS Maximium 7,4 kW (1Phase) / Charging Power: 22 kW (3Phase) Rated Voltage AC±10%: 220 V to 240 V (7,4kW) / 400 V (11kW and 22kW) Rated Current: 32 A (7,4 kW - 1Phase) / 16 A (11 kW - 3Phase) / 32 A (22 kW - 3Phase) Connector type: Type 1 or Type 2 Cable Section: 5 x 6mm² (Pulsar) 5 x 10 mm² (Pulsar Plus) Configurable Current: from 6 A to rated current Protection Rating: IP54 / IK08 Residual Current DC 6 mA (only for Pulsar Plus) Detection:

CONNECTIVITY & USER INTERFACE Connectivity: Wi-Fi (only for Pulsar Plus) / Bluetooth User Identification: myWallbox app & portal User Interface: myWallbox app & portal Charger Status RGB LED / Information: myWallbox app Included Features: Power Sharing Optional Features: Power Boost / (available for Pulsar Plus) Dynamic Power Sharing / MID Meter Communication Protocol: OCPP 1.6j (only for Pulsar Plus) / myWallbox
