Special: New Battery Monitor w/ 300A Shunt – Pro-Grade Power Meter on Afterpay

Tested ±1% Accuracy Not Fake Claims Choose Real Quality

Professional-grade manufacturing with guaranteed accuracy.
All measurements are ensured to fall within a ±1% margin of error — a key distinction between genuine factory-made instruments and lower-quality imitations with far greater deviation. Any unit exceeding this tolerance is considered substandard. Please purchase carefully and choose wisely.

Description
This is a multifunctional DC digital meter for measuring voltage, current, power, capacity, internal resistance, and more. Ideal for battery packs, RC models, solar systems, and automotive use. Features real-time LCD display and includes a 300A external shunt.

Key Features

• Accurate ±1% measurement across all functions
• Real-time LCD screen with full viewing angle

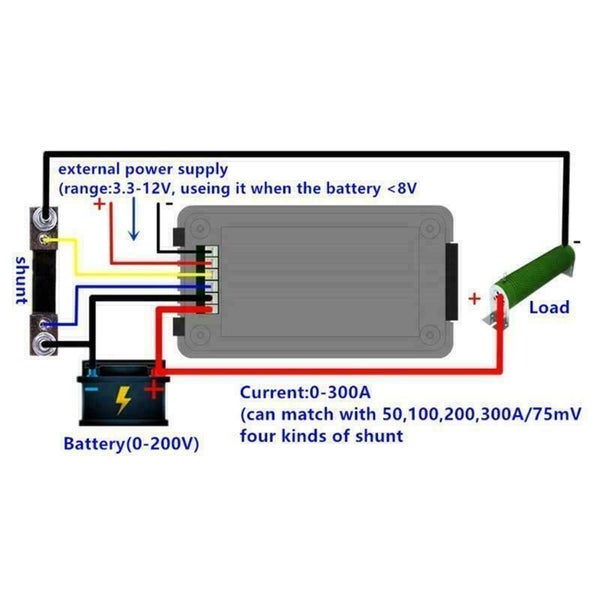

• Includes 300A external shunt
• Flame-retardant ABS casing for safety

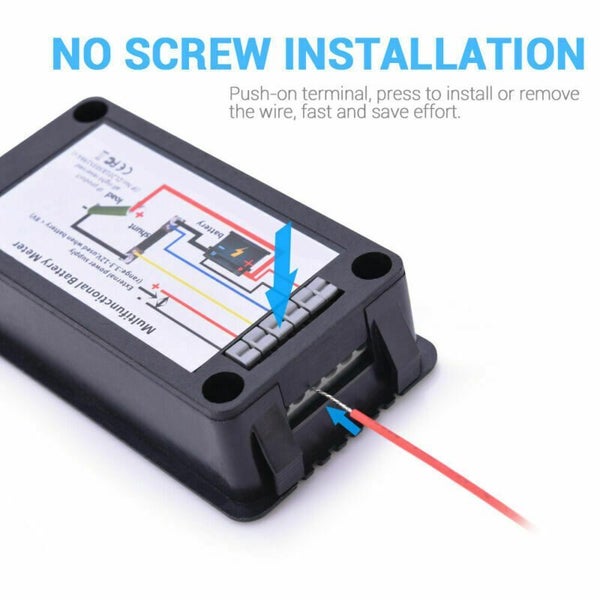

• Tool-free press-fit terminal block for quick installation

Specifications

Model: PZEM-015
Measuring Range: Supports up to 300A with included external shunt

Voltage Measurement

• Range: 0–200V
• Resolution: 0.01V
• Accuracy: ±1%

Current Measurement

• Range: 0–300A
• Resolution: 1mA
• Accuracy: ±1%

Power Measurement

• Range: 0–2000W / 60,000W
• Resolution: 0.01W
• Accuracy: ±1%

Impedance: 0–1000 O (resolution: 0.1 O)
Capacity: 0–1000Ah (resolution: 1mAh)
Energy: 0–9999kWh (resolution: 1Wh)
Run Time: Up to 999 hours
Working Temp: -20°C to 60°C
Size: 89.6 × 49.6 × 24.25 mm

Package Contents

• 1 x DC Multimeter Battery Tester Monitor
• 1 x External Shunt (300A included)
