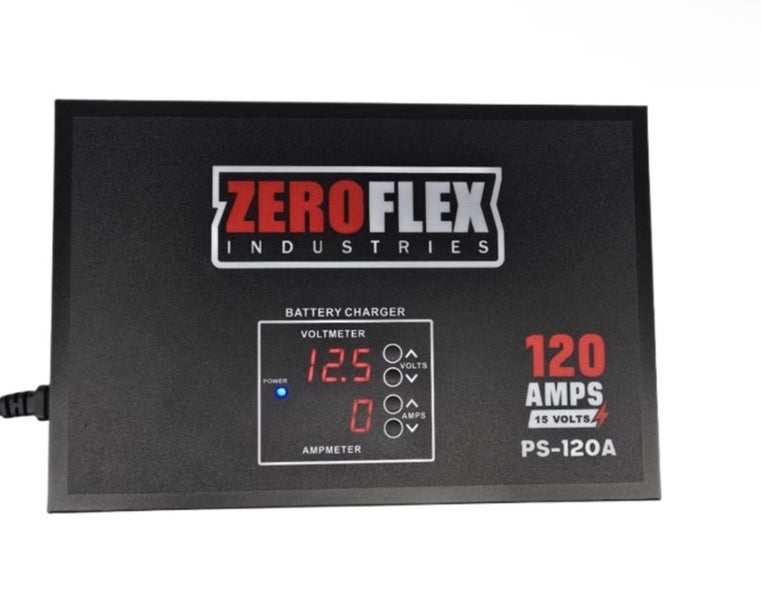

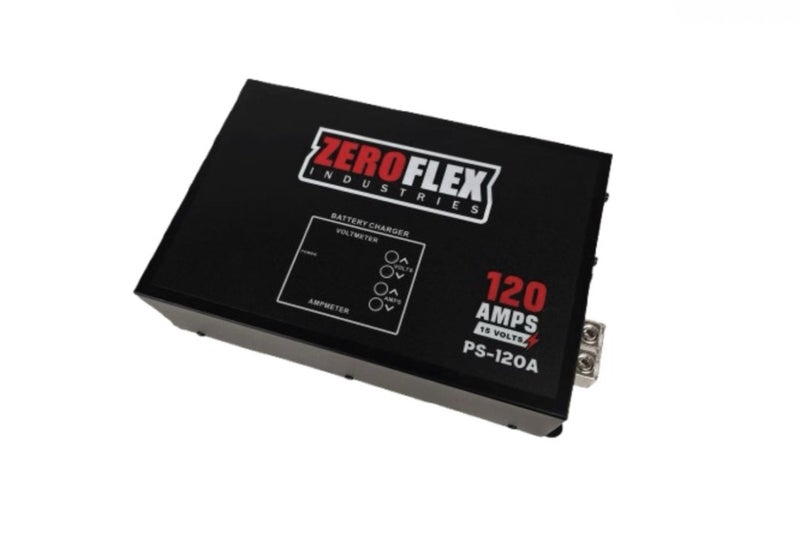

ZEROFLEX PS120A Battery Charger Power Supply

The PS120A is a variable voltage battery charger and power supply all in one unit.

You have the ability to adjust the output voltage from 12.5V to 15V to suit the required purpose.

You can also adjust the output amperage right down to 10A so you can use it as a standard battery charger.

Usable on all types of Automotive and Marine Commercial 12v batteries.

Got a large 12V battery bank (solar or motorhome) and want to get the voltage up fast? A conventional charger can take days. The PS120A can do the same job in hours.

Got a flat car battery? Simply connect the PS120A wait 2 mins and crank the car over. You’re good to go!

Then once you are home reconnect and drop the amperage down to 10A and put the battery through its recovery cycle.

The PS120A is a jumper pack and charger all in one.

Do you want to test 12V electronics? Have the most amount of power you can get from a 10A domestic power source ready to go!

Do you want to power garden lighting? You can connect all the lighting you want to this unit and at the flick of a switch have it all come on. No need to pay an expensive electrician bill.

Input Voltage: Automatic Bivolt 110v-220v

AC 127Vac: 100A @ 140Vac

AC 220Vac: 170 @ 250Vac

Consumption 127Vac: 23A (Maximum)

Consumption 220Vac: 13A (Maximum)

Output Voltage: 12.5V @ 15Vdc (+-1%)

Output Current: 120A @ 12.5Vdc (+-5%)

Output Power: 1500 Watts (Maximum)

Efficiency: 85%

Input Power: 1800 Watts (Maximum)

Input Cable: 3x1.5mm2 - 2P+T

Input Protection: 25A Circuit Breaker

Output Cable: 25mm2 (4 AWG)

Recommended Extension: 2.5mm2 (Max 30 meters)

Dimension: 308mm x 186mm x 75mm SKU: PS-120A
