Ford XR6TBarra 1,300HP Engine Rebuild Kit
Description
Spool Ford Barra 1300HP Rebuild Kit Everything You Need for Big Power

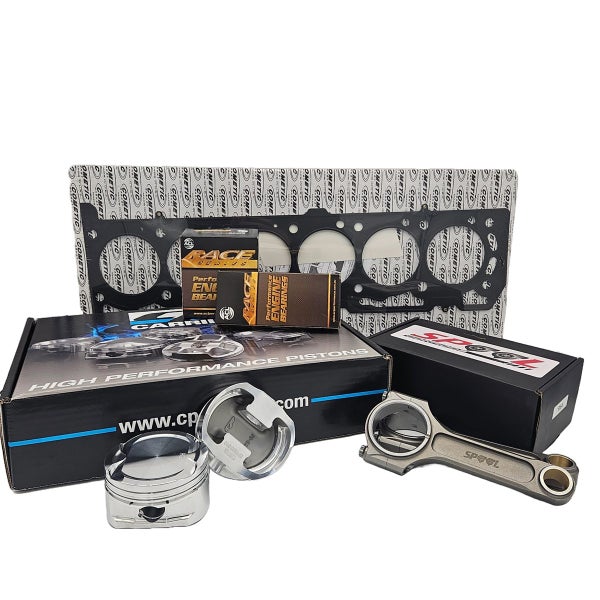

This Rebuild Kit includes the following proven Parts for XR6 Turbo and NA+Turbo Builds:
- Spool Forged Drag Pro I-Beam Conrods
- CP Bullet Or Ross Racing Forged Pistons with 4 x Valve Reliefs (Rings, Pins and Locks Included)
- Athena Cut Ring Head gasket
- ACL Race Series Main Bearings (360 thrust)
- ACL Race Series Big End Bearings
CP Bullet Pistons feature:
- 2618 Forged Alloy
- Offset Gudgeon Pin
- 4 x Valve Pockets
- 9310 0.200a pins
- Includes piston rings, pins and pin locks.
Ross Racing Pistons Feature:
- Bore Size: +0.25mm / 9:1
- Anodizes and Ceremic coated
- Pistons come with Totalseal Ring Pack
- 4 Valve Pockets
- 0.250" wall H13 Pins
- Forged 2618
- Locks

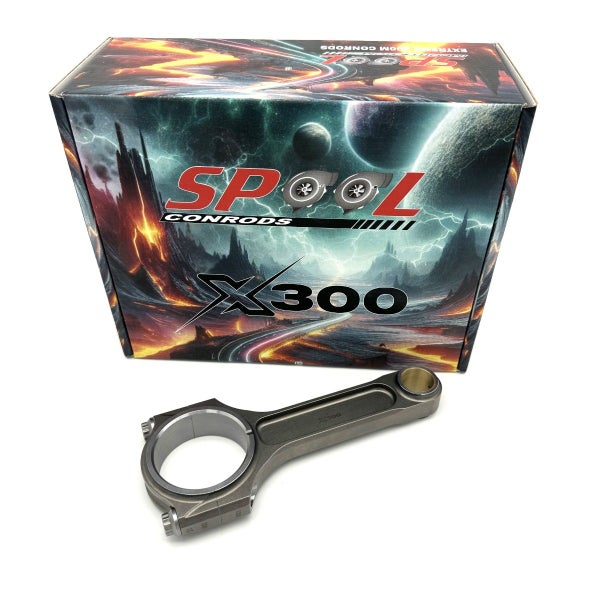

Spool Connecting Rods Feature:
- ARP 2000 fasteners
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Please Note:
*STD bore size pistons are not recommended in a used bore for any performance engine unless the bores have done minimal work with minimal wear and the correct piston to bore clearance can be adhered to.
All piston manufacturers have a specific piston to bore clearance that they recommend. If STD bore pistons are requested and there is a piston to bore clearance issue we will not exchange or refund, due to the reasons given above.
Where different options are described above, please let us know what option you would like. Some options have additional costs please ask us for a price.
/r/n/r/n
All pistons and conrods are priced as a set. Pistons come with Rings, Pins and Locks. Conrods come with ARP2000 Bolts.
/r/n/r/n
Please allow up to 7 days for del...
