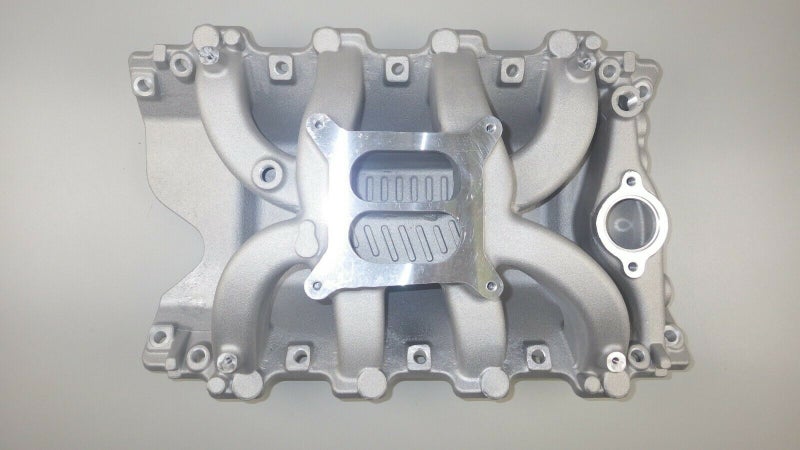

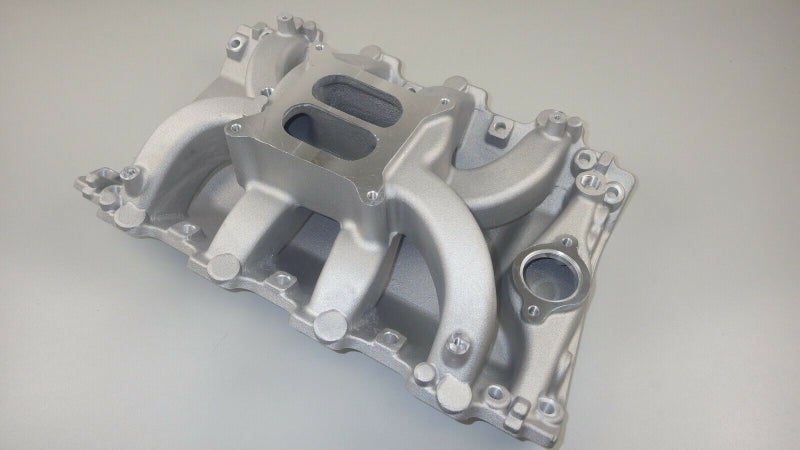

AFTERBURNER RPM Performer Air-G Intake Manifold Holden 304 Dual Plane Satin#7594

RPM Performer Air-Gap Holden 253-304-308 1988-98 Intake Manifold

INTAKE MANIFOLD, RPM AIR GAP, VN, HOLDEN, 1988-1998, CARBURETED

Utilizing the proven short runner tunnel-ram style, both of these manifolds provide the next step up in performance for LT1 and LT4 owners. These are both direct stock replacements for OEM equipment with all required emissions features.

Based On Performer RPM Series With Unique Air Gap Provides The Next Step Up In Performance Designed for 1500 to 6500 RPM Performance

Specifications :

Product Type: Intake Manifolds, Carbureted

Intake Section Included: Complete

Engine Block Style: Stock/OEM standard deck

Carburetor Quantity: One

Intake Style: Dual plane

Basic Operating RPM Range: 1,500-6,500

Intake Manifold Height: 5.820"

Intake Finish: Natural

Intake Material: Aluminum

EGR: No

Quantity: Sold individually

Notes:

This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Holden VN RPM cylinder heads.

CARB RECOMMENDATIONS: OEM 4-bbl. Performer Series (600-750 cfm) Carburetor.

INSTALLATION NOTE: Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions, internal leakage of both vacuum and oil may occur. Recommended intake gasket: Stock gasket set or equivalent. Manifold height: A-4.80", B-5.82"; Carb pad height: 5.31". Port exit dimensions: 1.16" x 2.00".
