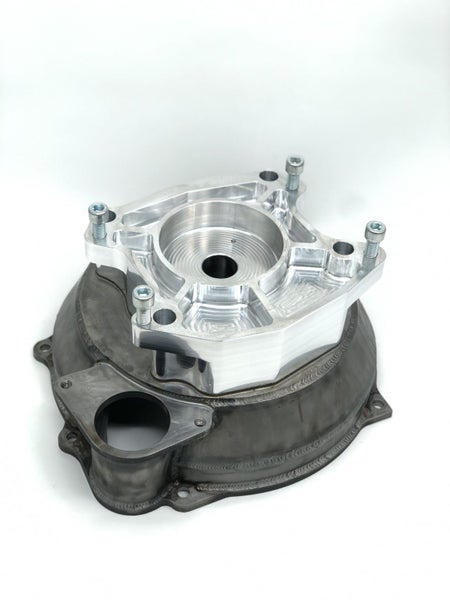

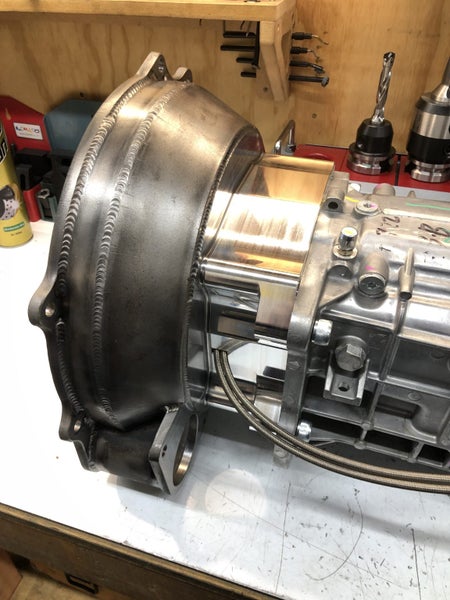

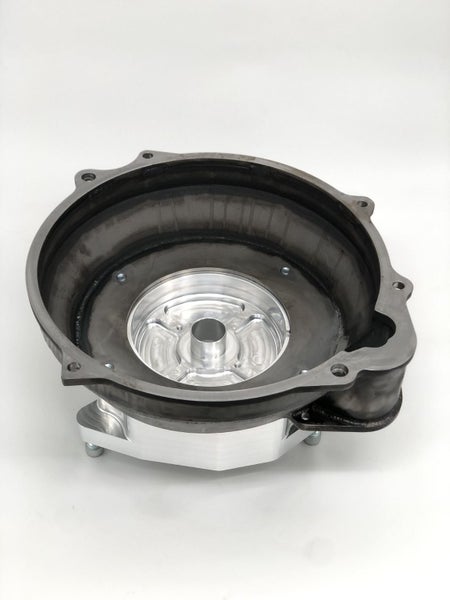

Mazda Rotary Modular Steel Bell housing - Tremec TKX / TKO

Modular steel bell housing - direct bolt up to Tremec TKX / TKO and most other GM bolt pattern transmissions.

-Bolts to any 12A, 13B, 20B, billet rear plate (except twin distributor models). -Slightly more compact in diameter vs stock FC bell housings. -Fabricated & CNC machined in-house from 1/4in cold rolled steel plate & waterjet cut flanges. -Adapter is CNC machined in house using 6061 T6 aluminium. -Adapter can be unbolted from the rear side, greatly simplifying in-car gearbox installation & removal. -Adapter can be swapped with any of our modular adapters. -Fits most common clutches including stock Mazda size. 7.25in single, twin, and triple plate, 8in Direct Clutch single and twin plate, 9.5in single plate. -Compatible with stock FC 1.2KW and 2.0KW starter motors. -Double lip input shaft seal. -All machining is done post welding. Alignment tolerance within 0.08mm. -Anti-rust Epiphos coated (can be painted over). -Meets NZDRA, IHRA, and ANDRA bell housing requirements. -No provision for clutch fork.

NOT INCLUDED Optional Tilton Hydraulic release bearing kit. Three bearing diameters available to suit most clutch types. Includes mounting hardware, 3AN plumbing, bleeder, height shims. $1050.

Keywords: 12a 13b 20b ida rotary rx2 rx3 rx4 rx7 pp FD S6 S7 S8 bat REW TT R154 R151 Tremec TKO TKX
