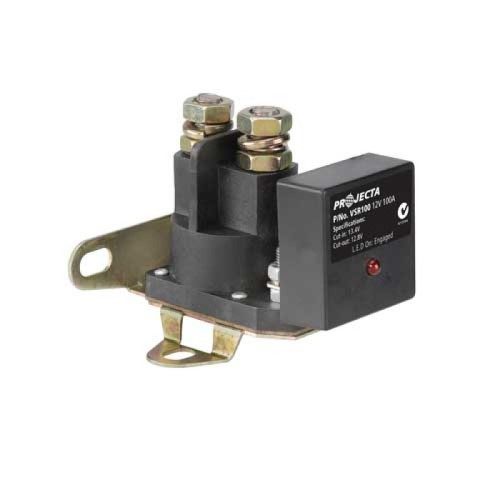

Projecta - 12v 100a Voltage Sensitive Relay

The perfect �no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.

FEATURES L.E.D indicator L.E.D illuminates when VSR is activated

Sealed electronics Prevents dust and water ingress (IP66)

Surge protection Built-in protection guards vehicle against voltage spikes

Manual override Bypasses automatic settings allowing relay to engage below set voltages

Silver tip contacts Provide exceptional current transfer

SPECIFICATIONS VOLTAGE 12V

CHARGING CURRENT 100A Continuous, 200A Peak

CUT-IN VOLTAGE 13.4V

CUT-OUT VOLTAGE 12.8V

CUT-OUT DELAY 8 seconds

MINIMUM OPERATING VOLTAGE 10V

CHARGE TYPE Parallel

CONTROL MCU

MOUNTING Surface/firewall

CURRENT DRAW Charging 550mA (standby 10mA)

SURGE PROTECTION Built-in

INGRESS PROTECTION IP66

OVERRIDE Requires min. 10V

RECOMMENDED FUSE 150A

MINIMUM CABLE SIZE 14mm2 (6 B&S)

APPROVALS EMC

Brand - PROJECTA The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc. L.E.D illuminates when VSR is activated. Prevents dust and water ingress (IP66). Built-in protection guards vehicle against voltage spikes. Bypasses automatic settings allowing relay to engage below set voltages. Provide exceptional current transfer.
