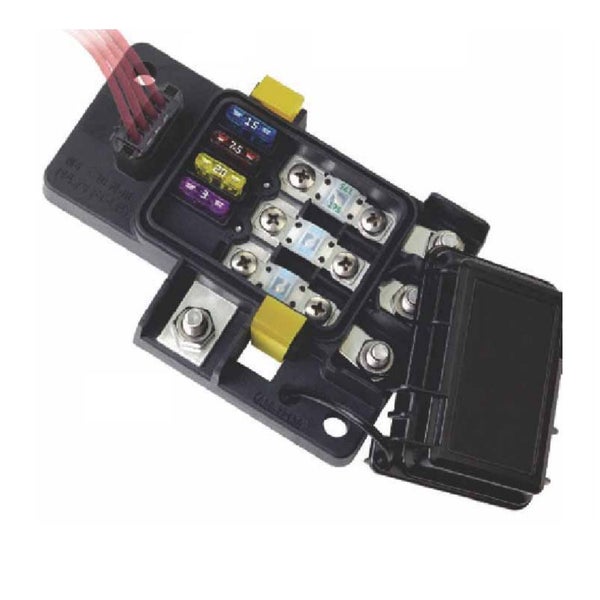

Power Distribution Module 3 x Midi, 4 x Auto Fuse Max: 350a, 32v

Description

Protect high and low-amp circuits with this PDM. Holds 3 x MIDI fuses and 4 x Auto fuses.

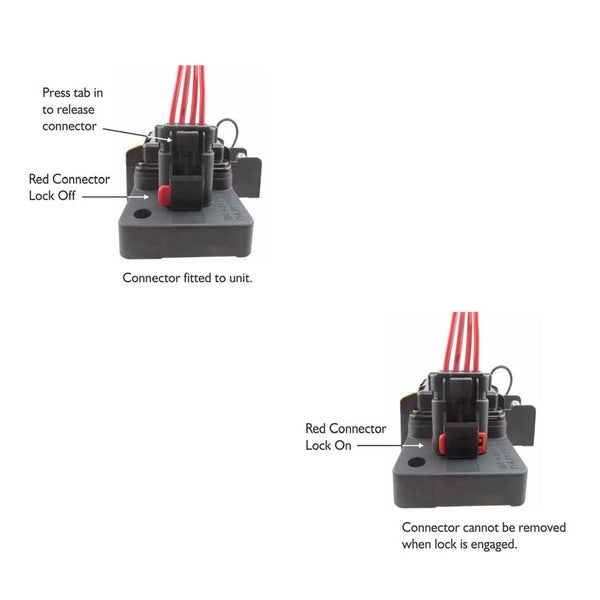

The Auto fuse output circuits are wired to an integrated sealed 4-way connector (P/N: XTCK4).

A common power input stud provides power for the 7 fuses via a tin-plated copper busbar.

Stainless steel studs and hardware provides superior corrosion resistance.

Cover & gasket included.

Includes connector for Auto fuses

** fuses not included**

Power Distribution Module 3 x Midi, 4 x Auto Fuse Max: 350a, 32v

Voltage: 32 (limited by fuses). VDC

Maximum Continuous Current : 350A.

Max Per Circuit (Midi) Fuse Rating : 170A.

Max Fuse Per Circuit (Auto) Rating : 30A.

Power Input Stud: M8 (300A max.) stainless steel

Midi Fuse Output Studs: M8 stainless steel

Input & Output Studs Torque: 20Nm

Midi Fuse Screw: M5 x 6pcs (+ 2 spare screws)

Midi Fuse Screw Torque: 3 Nm

Body Material: Glass filled nylon 94V-0

Cover Material: PC 94V-0

Temperature Rating: - oC to + 5oC 55 12 .

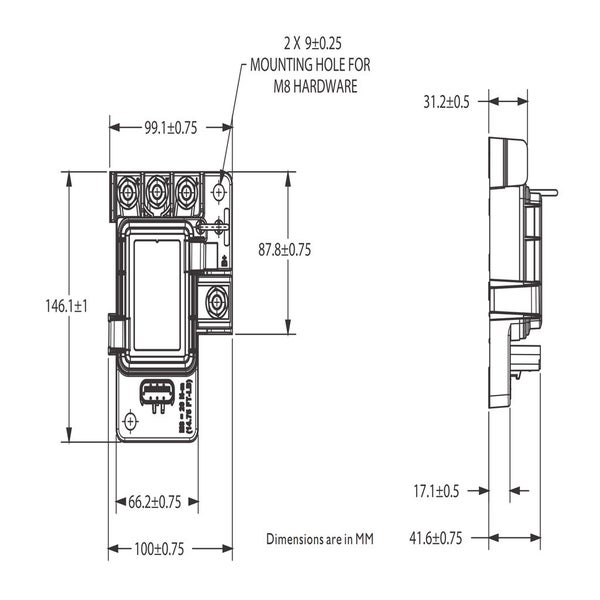

Mounting: 2 holes for M8 bolts.

Kit Contents: Includes cover, nuts & screws.

IP Rating: IP59K

Ignition protected: Meets ISO 8846 & SAE J1171

Notes: A connector is required for the Autofuse

outputs.

Connector for Auto fuses is included

Fuses not included.
