Littlefuse 3 x Midi 4 x Auto Fuse Power Dist Module with Isolator
Description
3 x Midi 4 x Auto Fuse Power Dist Module with Isolator
Voltage: 32VDC (limited by fuses).
Switch Continuous Ampere Rating: 300A at 85oC, 240A at 105oC
Switch Cranking Rating: 10 sec. 1000A
Max Operating Ampere Per Block: 240A (Midi fuse), 50A (Auto fuse)
Max Operating Ampere Per Circuit: 170A (Midi fuse), 20A (Auto fuse)
Minimum Input Cable Size*: 4/0 AWG (120mm )2
Minimum Output Cable Size (Midi)*: 2/0 AWG (70mm )2
Fuse Ampere Ratings: 30A-200A (Midi fuse), 1A-20A (Auto fuse)
Studs: Tin-plated copper, M8 x 1.25
Midi Fuse Screws: M5 x .8 x 10
Hardware: Stainless steel
Operating Temperature: -50oC to 105oC
Module Contents: Includes cover with gasket.
Mounting: Mount as close as possible to the battery, but not above vented lead acid batteries.
Mount in a dry protected location.
Where possible mount in a vertical orientation.
Unit must not be mounted upside down.
IP Rating: IP59K / IP66
Ignition Protected: SAE J1171, ISO 8846
Dimensions: 152 x 102 x 45mm
Littlefuse 3 x Midi 4 x Auto Fuse Power Dist Module with Isolator

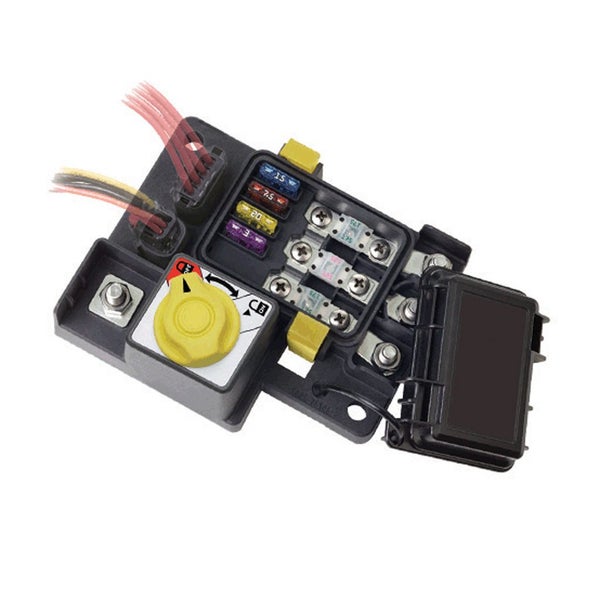

The 880076 SL series integrated fuse block is designed to power to 3 x switched high-amp circuits using either a remote switch or the manual switch on the block.
This block also includes 4 x low-amp always- on circuits to power loads like clock, alarms etc.
All 7 x output circuits are fuse protected.
Power is output via 3 studs (high-amp circuits) or a single 4 wire connector (low-amp circuits).
Notes: Auto fuses & Midi fuses and 2 x connectors are not included.
