Littlefuse Midi Fuse MDB Power Distribution Module Up to 3 Fuses

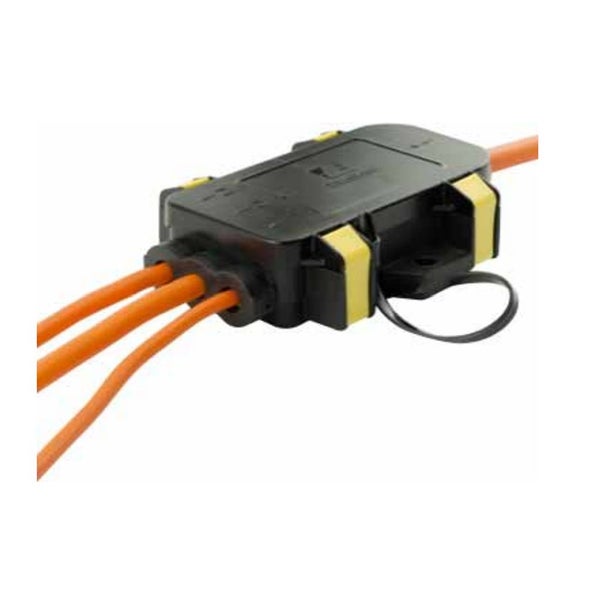

Littlefuse Midi Fuse MDB Power Distribution Module Up to 3 Fuses The Littelfuse MDB series is an internally bussed, water-proof and dust-proof fuse holder developed for high current loads, and harsh conditions. The unit is wellsuited for near-the-battery applications and can be mounted in exposed locations to fit your design. A single input power cable connects to a 3 pole busbar to feed either 2 or 3 Midi fuse protected output cables. Eliminates splices multiple fuse holders. In addition, 2 spare Midi fuses can be & fitted to the inside of the cover using the included screws. Very high IP Rating. Voltage: 58VDC max. Maximum Total Current: 200A Wire Size: 16 or 25mm2 (input cable), 6 to 16mm2 (output cables) Temperature Rating: -40 C to + 85 C. Body & Cover: UL 94-V0. IP69K Ingress Protection Rating: IP67 when cover, cable seals, & caps are installed. Cables must not exceed the minimum bend radius advised in the included instruction sheet to ensure seal integrity. Cavity Plug: Included cavity plug must be fitted if using only 2 x Midi fuses. Mounting: Surface mount using 3 fixing holes (M6 or 0.25"). Suit Fuse: Midi fuses.

** Does not include Midi Fuses...

Littlefuse Midi Fuse MDB Power Distribution Module Up to 3 Fuses The Littelfuse MDB series is an internally bussed, water-proof and dust-proof fuse holder developed for high current loads, and harsh conditions. The unit is wellsuited for near-the-battery applications and can be mounted in exposed locations to fit your design. PDM Module kit includes; 1 x Base with tethered cover & seal. 1 x Busbar power up to 3 fuses from a single input cable. 6 x Nuts to secure up to 3 Midi fuses. 6 x Cable seals of assorted sizes. 1 x Cavity plug (required if you only install 2 x Midi fuses). 2 x Cable seal caps to secure cable seals into unit. 4 x Screws to secure 2 spare fuses to inside cover. 1 x Instruction sheet. Module kit does not include Midi Fuses Made in the USA
