For Holden EH HD HR HK HT HG HQ HJ HX HZ WB LC LJ LH LX UC Alternator 100 AMP

Item Code:ALTER-CV001

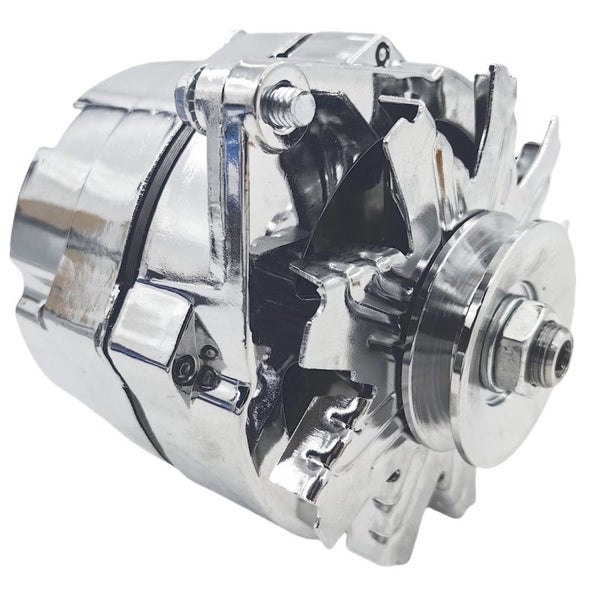

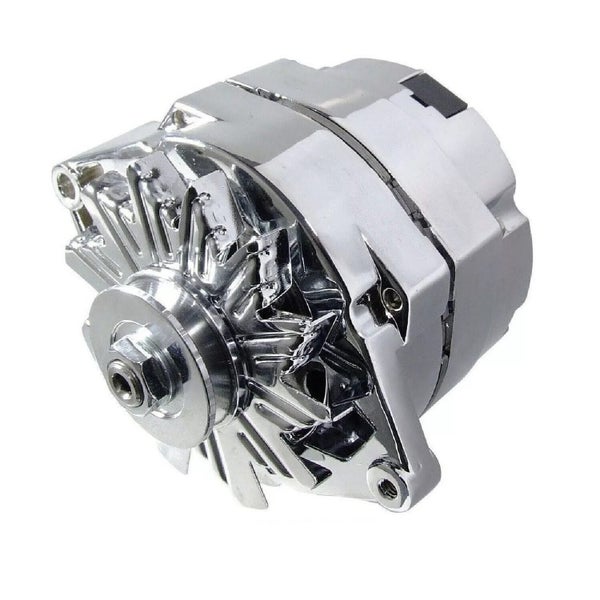

Features 12V, 100A, internal regulated, 1A Normal Pulley. Self exciting type alternator. Can be used in either 1 wire or 3 wire hookup configuration. Suitable to replace existing 1 wire, V-Belt type, internal regulator GM style alternator. Mounts measure approximately 18mm outside depth on the short side, 51mm outside depth on the long side. The measurement between the mounts from the inside edge, to inside edge is 159mm. The measurement between the mounts from the bolt centres is 6.60". Utilizes the the standard GM 10SI style case with 6.600” bolt centres. Total length from the front of the rotor shaft to the deepest point at the rear of the case is approximately 165mm. Please use the above measurements and information to compare to your original alternator, to ensure correct fitment for your vehicle.

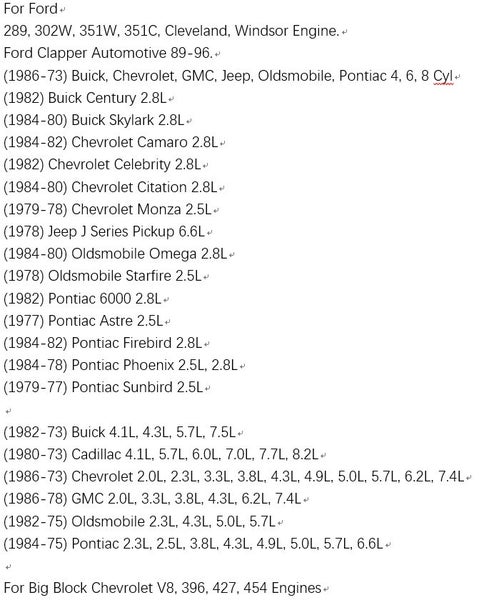

Fitment GM Small Block Chev V8 283, 307, 327, 350 Holden 253, 304, 308 V8 Engines Holden HT HG HQ HJ HX HZ WB Holden Torana LH LX Holden Commodore VB VC VH VK VL VN VP VR VS

Holden 6 Cylinder 149 161 173 179 186 202 Red/Blue/Black Engines Holden EH Holden HD HR Holden HK HT HG Holden HQ HJ HX HZ WB Holden Torana LC LJ Holden Torana LH LX UC Holden Commodore VB VC VH VK

Specifications Volts 12 Amps 100 Adjustment Hole (mm) M10x1.25 Pivot Hole (mm) 10 Adjustment to Pivot (mm) 165 Pivot Length (mm) 60 Inside Feet To Feet (mm) / Pulley (mm) 67 No Of Grooves 1A Plug RP169

ReferencePart Number:347205 100A

Package:1 x Alternator
