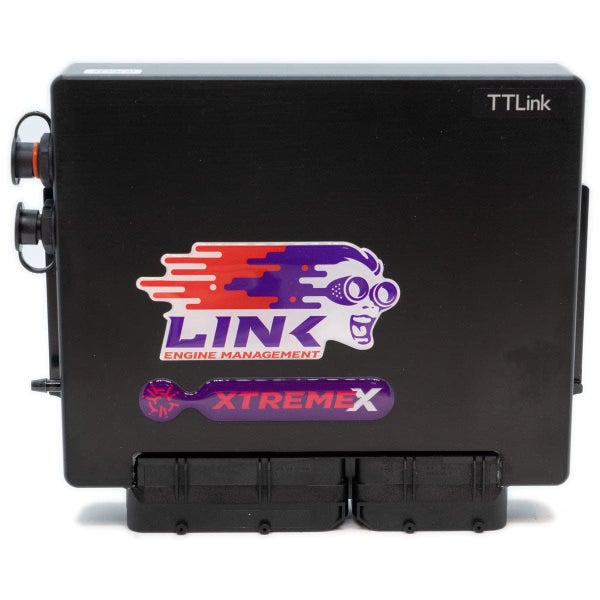

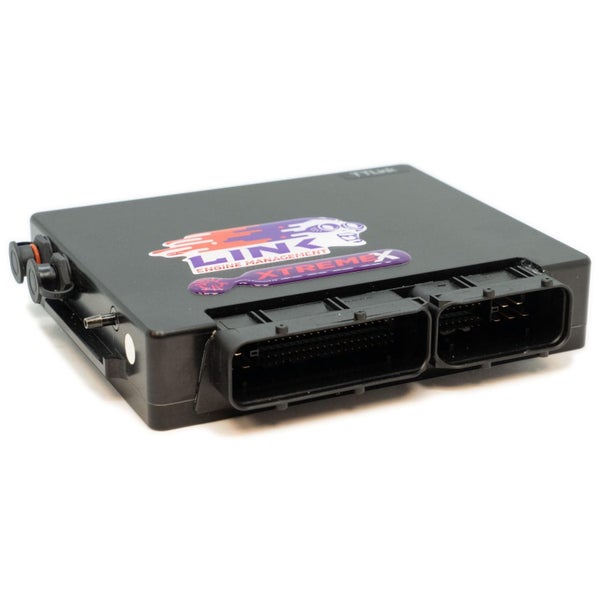

Link ECU TTLink - TTX
Description
Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to maximize the potential from your car.
This ECU fits in the factory OEM location. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.
The Link G4X ECU TTLink TTX PlugIn Designed for the VWAG PQ34 1.8l Turbo enginewith E-Throttle.
This ECU works with manual transmissions only.
Includes an onboard 4 bar or 7 bar MAP sensor.
Most factory features are supported.
Check the features tab for I/O expansion options
This PlugIn ECU is not compatible with the CANJST cables. To connect to the CAN use CANLTW (PN 101-0211) or CANF (PN 101-0020)
Suitable applications:
Engine must be 1.8T
ECU header must have two connectors, 121 pin total
Must be Drive by Wire (E-throttle)
Must be manual transmission
FWD or 4WD (Haldex)
The following vehicles are known to be compatible:
Make
Model
Years
Engine code
Audi
TT
99-02
AJQ
VW
Beetle
2005
AWU
VW
Passat
2000
VW
Golf
2001
AUM
The following vehicles are likely to be compatible with the ECU, but are untested:
Make
Model
Years
Engine code
Audi
A3
98-00
AJQ
A3
99-00
APP
A3
99-01
ARZ
A3
00-05
ARX
A3
00-05
ARY
A3
00-05
AUM
A3
00-05
AUQ
A4
98-00
APU
A4
00-02
AV...
