Radium Engineering FPD-XR Fuel Rail Inline Pulse Damper Extra Range 40-105psi...
Description
The opening and closing of fuel injectors creates pressure pulses in the fuel rail which can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a Radium Engineering fuel pulse damper (FPD) is often necessary. The FPD's internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and often help idle surge, especially with high-flow injectors. A fuel pulse damper can also solve erratic lean air/fuel ratio spikes, commonly experienced as "stumbling," that are difficult to tune out.
What makes Radium FPDs unique?: Along with having the flexibilty of using common fittings, Radium Engineering FPD's use a vacuum/boost reference port which allows for proper fuel pulse damper performance even at elevated fuel pressures. This becomes essential for boosted systems that use a 1:1 rising rate fuel pressure regulator.
Features: The anodized aluminum housing features two selectable threaded male fittings. The 8 AN ORB version seals using a FKM O-ring, while the 3/8 in. NPT variation seals with the tapered pipe threads.
- The FPDs can be mounted at any possible angle including upside down. For best results, the damper should be mounted directly onto the fuel rail(s). These products are safe for use with all fuel types, including alcohol blends such as E85. (Not recommended for the low-pressure side of mechanical fuel pumps.)

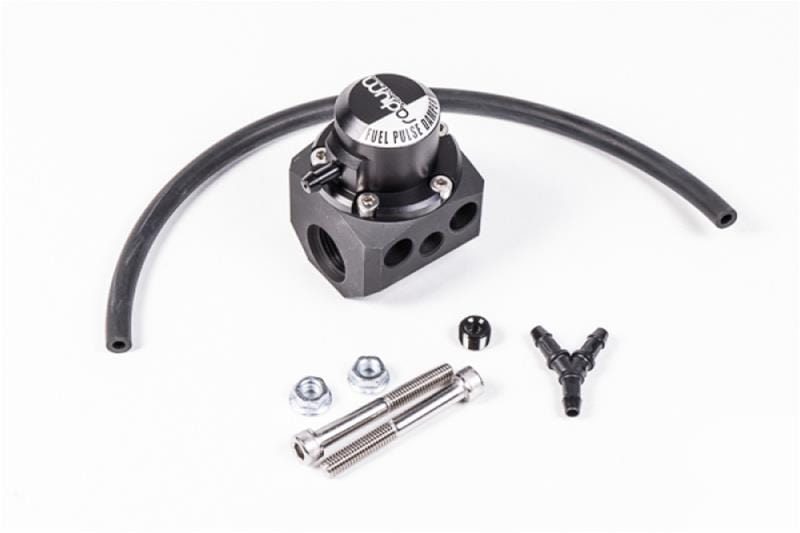

Included:
- Anodized and laser engraved aluminum top, R=range or XR=extra range
- Anodized aluminum body with male threads, 8 AN ORB or 3/8 in. NPT
- Stainless steel hardware
- Rubber vacuum hose, 4mm I.D.
- Vacuum hose Y-fitting Brand: Radium Engineering Manufacturer's Part Number: 20-0200-06 Part Type: Fuel System Pulsation Dampers Product Line: Radium Engineering Fuel Pulse Dampers Stealth Ride Part Number: RDM-20-0200-06 Quantity: Sold as a kit. Notes: Includes fittings for -6 AN hose.Please note: This is a special order item by St...
