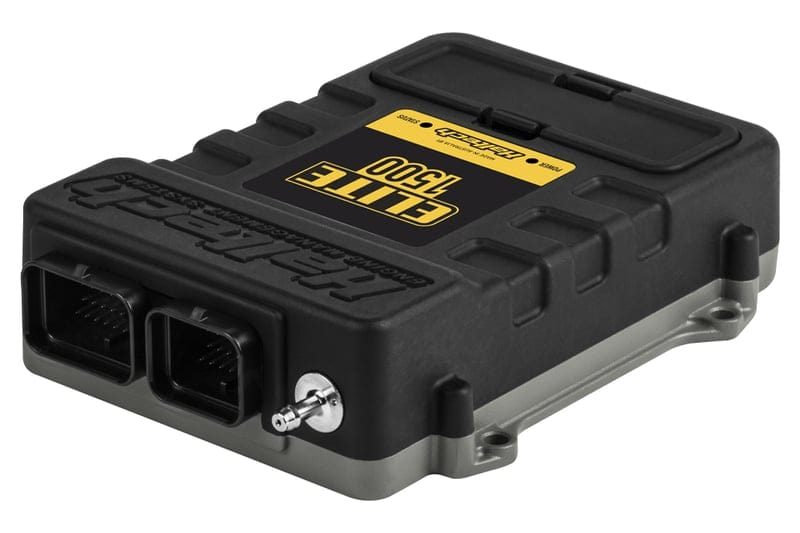

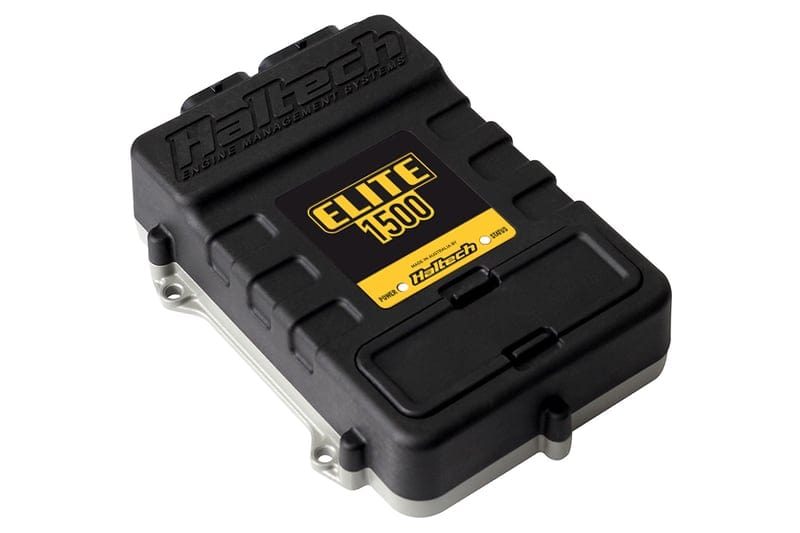

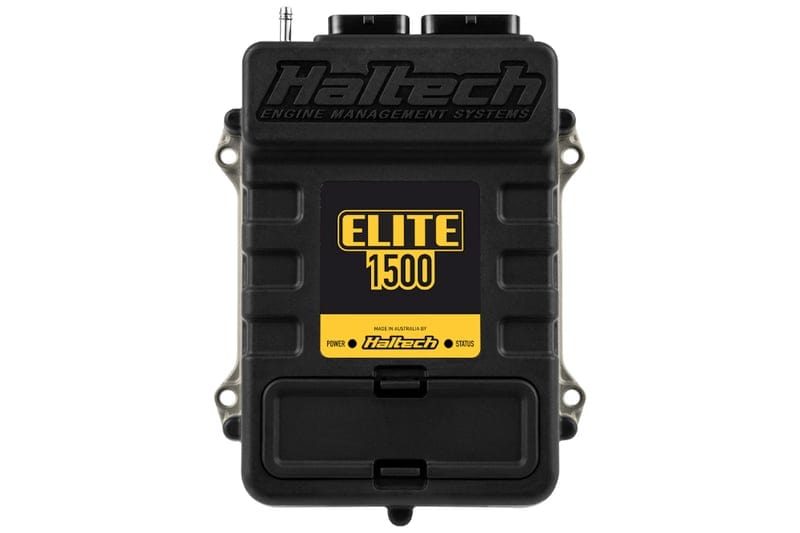

HALTECH Elite 1500 ECU

Outputs: Up to 4 injector and 4 ignition. Suits: Popular late-model performance and racing applications. Recommended for 4-cylinder, DBW or 2-rotor engines, EFI conversions, and engines with multiple variable camshafts. Includes: Elite 1500 ECU with DBW and Race Functions, USB programming cable. Notes: Available with universal wiring, terminated engine harnesses or model-specific Plug'n'Play adaptor kits.

ECU OVERVIEW Elite 1500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4vcylinder, Drive-By-Wire (DBW) or 2 rotor engines, EFI conversions, engines with multiple variable camshafts. Featuring a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, the Elite 1500 ECU provides engine calibrators with the tools they need to get the job done right. The Elite 1500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide. Supports 1 to 12 cylinder engines 2 rotor engines Normally aspirated or forced induction Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) Staged, sequential, semi sequential, batch or multipoint injection patterns Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems Connect to a wide range of display dashes and expansion devices via CAN. 4 x fuel injection outputs 4 x ignition outputs 12 x digital outputs 10 x analogue voltage inputs 4 x synchronised pulsed inputs 3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor) 2 x dedicated engine position inputs with extensive tri...
