2L Black Radiator Universal Water Coolant Overflow Expansion Tank With Level

Description

This universal coolant reservoir tank is fit for most vehicles and includes an accurate liquid level indicator for easy reading of liquid levels.

Made of high quality aluminium alloy and TIG welded, it is durable and stable for long life service.
Drain plug at the bottom for easy draining and cleaning
Precision CNC billet aluminium cap (Non breather type)

Customizable Design:

All ports on the tank are threaded, there are 3 on each side (2 at the top and 1 at the bottom).
2 are blanks with a threaded insert
2 are used on one side for the level indicator (one blank at the top)
2 are used on the other side for the inlet/outlet connections (one blank at the bottom)

The Outlets/inlets can be customized to suit your application. The standard item with ports in the positions as pictured are sealed for leaks already, however if you do move things around you will need to reseal the connections to ensure no leaks. Rings or a sealant may be needed. Customizing the ports is modifying the item and we will not provide any support for issues arising from this. Eg. If your joints are leaking or the threads have stripped from excessive tightening. We only recommend modification to an experienced professional.

Please note, there are no installation instructions, professional installation is required.

Specifications:

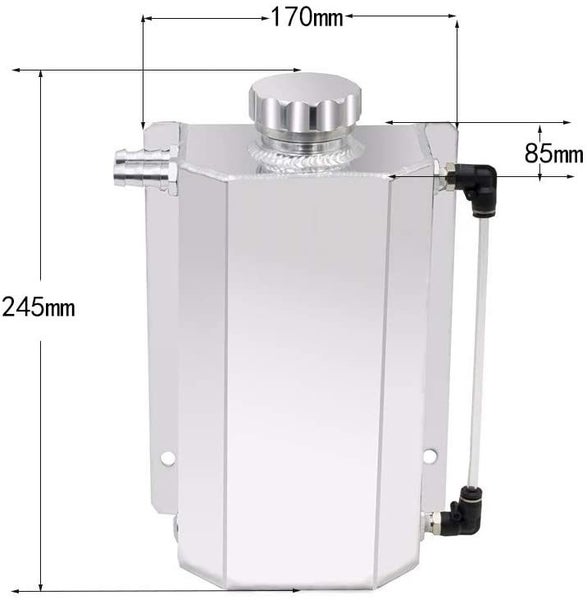

Colour : Black (the photo with the chrome tank is for showing the dimensions only)
Width: 170mm With Flange
Height: 245mm With Cap
Depth : 85mm
Inlet/Outlet Size :12mm
Thread Size : ORB -6
Capacity : 2L

Includes:

Aluminium Tank
Billet Aluminum Cap
2 x 12mm Barb hose fittings
