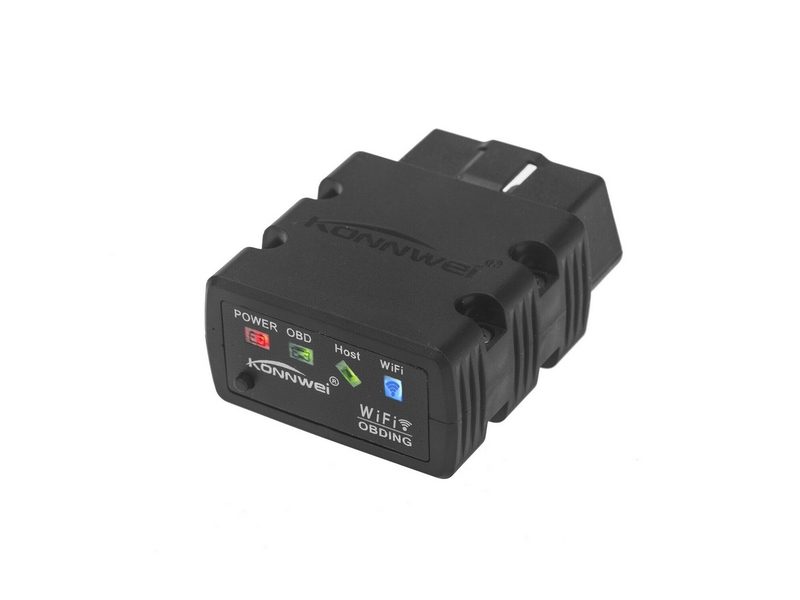

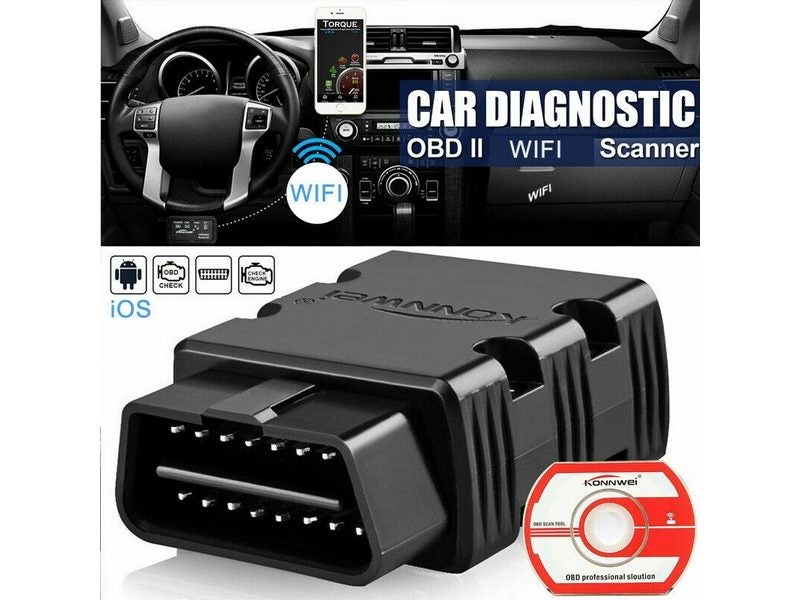

KONNWEI KW902 ELM327 OBD2 Car Code Reader Auto Diagnostic Scanner Adapter

Features:

Small size, compact structure. Plug and never unplug Stable wireless connection No wires or batteries (adapter is powered by the diagnosis size sockets) Stop communication, wait half an hour, auto sleep Supports all OBDII protocols The adapter uses the fastest and most reliable ARM chips

Functions:

The device is a small adapter that plugged into the vehicle OBD-connector. On Bluetooth, it connects to computer, tablet or smartphone with associated diagnostic procedures.

1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.
3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.
6. Record various parameters, display graphics in real time, and more. With KW902 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.

Protocols:

0.Automatic 1.SAE J1850 PWM(41.6Kbaud) 2.SAE J1850 VPW(10.4Kbaud) 3.ISO9141-2(5 baud init,10.4Kbaud) 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud) 5.ISO14230-4 KWP(fast init,10.4 Kbaud) 6.ISO15765-4 CAN(11bit ID,500 Kbaud) 7.ISO15765-4 CAN(29bit ID,500 Kbaud) 8.ISO15765-4 CAN(11bit ID,250 Kbaud) 9.ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250Kbaud) B.USER1 CAN(11bit ID,125Kbaud) C.USER2 CAN(11bit ID,50*kbaud) *default settings(user adjustable)

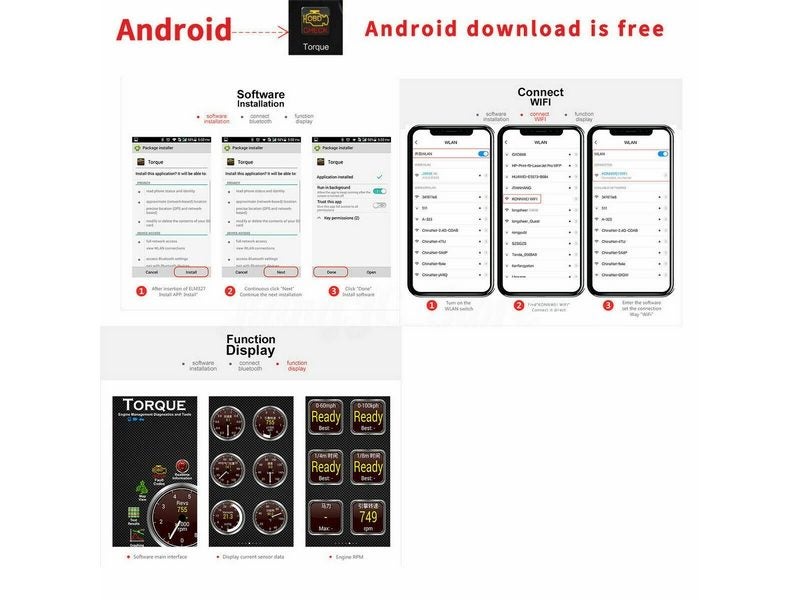

NOTE: The andrioid app(Torque) is free, but the iOS app(Dashcommand) needs payment for this item now. If anythings confusing feel free to contact me before auction.

Package Lists:

1 x KW902 Interdace Scanner 1 x Software CD 1 x User Manual
