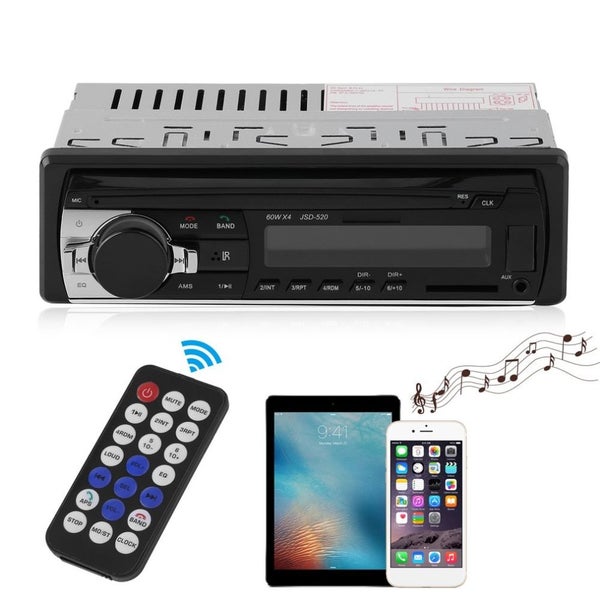

Car Stereo JSD-520 Bluetooth SD USB MP3 FM AUX receciver Double Din 12v

Feature: 1.Elegant carry case design, with clear LCD display, LED security light 2.Support MP3/WMA/WAV/APE file playback from USB/SD Card (Maximum support 32GB) 3.Support FM Radio, automatic frequency adjustment 4.Support hands-free calls, answer or hand up the phone after connect the radio via bluetooth 5.bluetooth function, play music from your phones via bluetooth 6.Volume Control/ Real Time Clock Function/ FM Radio/ Electronic Preset Equalizer Control 7.Auto memory preset store 8.Remote Control 9.Mounting Accessories included

Specification: 1.Model: JSD-520 bluetooth Type 2.Panel Size: 188 x 150 x 58mm (WideDeepHeight) 3.Installation Dimension: 178 x 150 x 50mm (WideDeepHeight) 4.Quantity: 1 piece 5.Power Supply: 12V 6.Max. Power Output: 60W×4 7.FM Frequency Range: 87.5-108.0MHZ 8.Back Light: Blue 9.English Manual: Yes

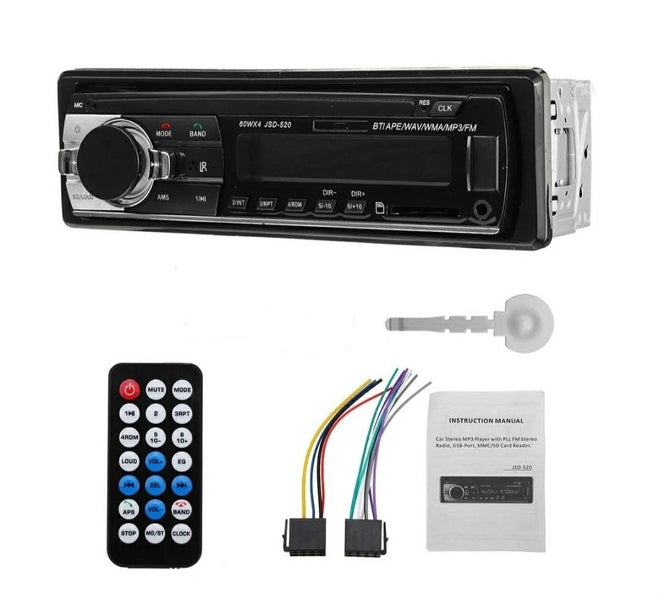

Wiring Guide: Testing Methods: 1.Twist the RED and YELLOW wire together and connect to the anode. The BLACK wire connect to the cathode. 2.Connect one piece of the wires to the horn, do not touch the wires each other. Installing Methods: please DO NOT electrify the machine before you connect the wires, otherwise it will damage the machine. 1.The YELLOW wire connect to the anode of accumulator, while the BLACK cathode. 2.The RED wire connect to the car key ignition. 3.If your cars have any subwoofers or exterior antennas, you also need to connect the BLUE wire. 4.Otherwise wrap the BLUE wire with adhesive plaster for other car models. Pakcage Included: 1 X bluetooth MP3 Player 1 X Remote Control 1 X Cable 1 X English Manual 1 X Packing Box

This item needs to be installed by a professional who is qualified,warranty will be void if this is found that this was installed by a non professional or qualified in the trade

Please note that processing takes 2-3 working days and delivery may take 1-5 working days
