15A AC Power External inlet and 16A RCD IP44 Black CMS 230Vac Plug N Play
Description

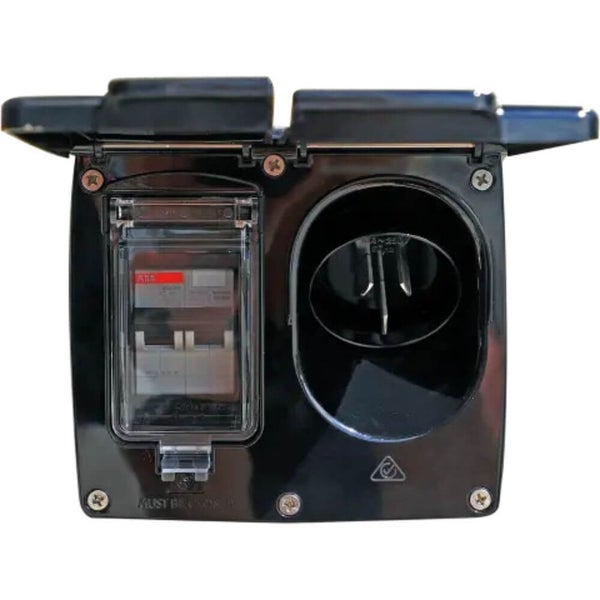

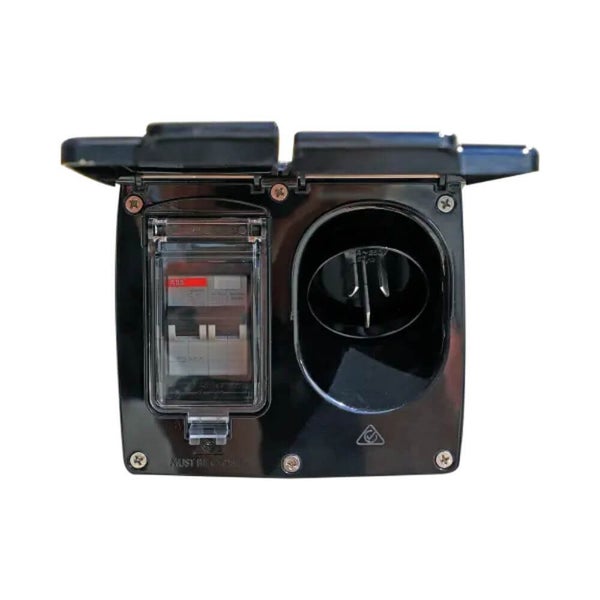

15A AC Power External Inlet with 16A RCD - IP44 Black CMS 230V Plug and Play
The 15A AC Power External Inlet with 16A RCD provides a ready-to-use power entry point for caravans, motorhomes, and RVs. Part of the CMS Electracom system, it facilitates safe 230V AC power connection with built-in 16A Residual Current Device (RCD) protection.
This unit features a 15A external inlet paired with a 16A RCD to help protect your electrical installations and appliances. It is designed for straightforward installation, speeding up setup before electrician certification.
Note: Not compatible with Jayco "J" type connectors. Verify compatibility before purchase.
Features
- Integrated 15A AC external inlet with 16A RCD protection
IP44 rated for splash and dust resistance
- Plug-and-play CMS Electracom system compatibility
- Suitable for caravans, motorhomes, and 4WD canopies
- DIY-friendly installation reduces setup time
- Durable black finish
Specifications
Input Current: 15A AC
RCD Rating: 16A Residual Current Device
Voltage: 230V AC
Ingress Protection: IP44
Colour: Black
Dimensions (W x H x D): 130 x 110 x 80 mm
System Overview
Standard CMS setup includes:
15A external power inlet (this unit)
- 16A circuit breaker or RCD for protection
- Connected power outlets using plug-and-play loom cables
Expand circuits or add lines for appliances such as battery chargers, hot water units, or air conditioners using additional cables and adapters.
Installation Notes
- Each circuit must have a 16A circuit breaker or RCD
- Maximum 10 double or 12 single power points per circuit
- Sealed cable ends (25 x 16 mm) ensure safe connections
- Allow extra cable length for maintenance
- Power points need minimum 32 mm recess depth
- Install wiring before fitting wall sheeting where possible
All components meet Australian and New Zealan...
