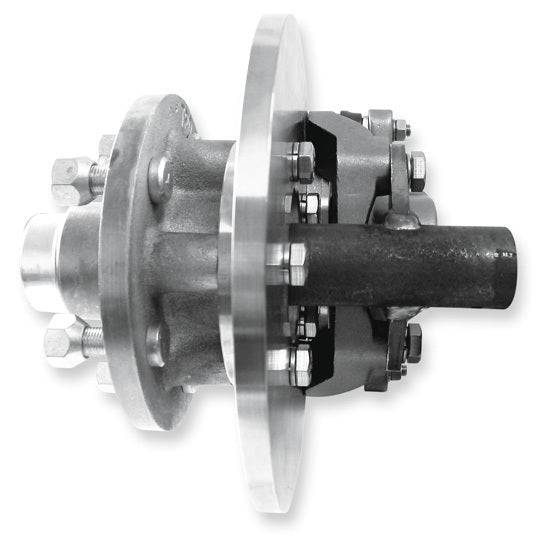

Hub/Stub Kit 1750kg C/I Disc 5x4/2x1/2

Hub/Stub Kit 1750kg C/I Disc 5x4/2x1/2 - Designed to fit Trojan products but should fit most NZ trailer axles

Hub/Stub Kit 1750kg C/I Disc 5x4/2x1/2Features

• These braked hub kits are designed to fit our Duratorque and beam axles but should also fit most NZ manufactured trailer axles.
• The Hubs have a 1750KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs.
• Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes.
• The most common stud pattern is 5 Stud with a PCD measurement of 4 1/2 inches and fits our most commonly stocked rims and tires.
• The hub kits in this range include a full cast disc or a fitted bolt-on disc in either cast iron or stainless steel.
• There are a pair of 38mm round stub axles included with a built-in calliper mount.
• Brake callipers sold separately

Specifications

Part No:

Rotor Type:

Stud:

PCD diameter:

Stud width:

'x' in mm:

T145135

Integral

5

4 1/2 inch

1/2 inch

67.183mm

T145140

Integral

5

120mm

7/16 inch

70.535mm

T146135

Cast iron bolt-on

5

4 1/2 inch

1/2 inch

67.183mm

T146140

Cast iron bolt on

5

120mm

7/16 inch

70.535mm

T146335

Stainless steel bolt-on

5

4 1/2 inch

1/2 inch

67.183mm

Pack Size: PR Weight: 20kg Products are sent from suppliers and ships within 4-7 days J - 28.03.22
