CONCRETE PUMP

All Jacon machines come with Warranty & NZ After Sales Service and Support

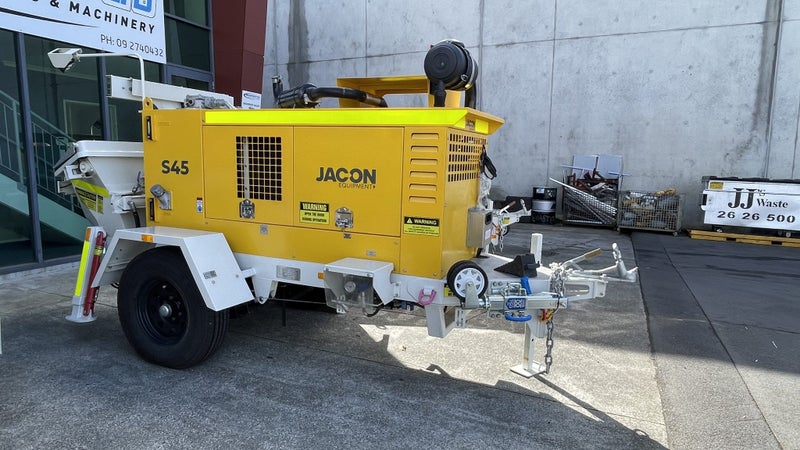

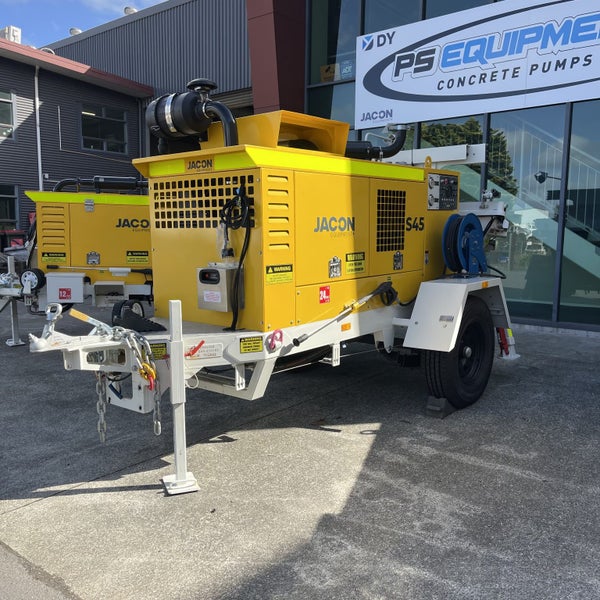

Jacon S45 $124,000 +GST

Specifications:

Factory fitted High pressure hydraulic water blaster. Pump: 160mm hard chromed concrete cylinders with 900mm stroke. Power unit: 4-cylinder turbo charged, Deutz diesel engine, 78KW @ 2200 RPM. Hydraulic pressure Max.: 350 BAR. Rated output: 45 m3/hr. Line pressure max. 80 Bar. Vertical reach: 100 metres. Horizontal reach: 350 metres. 125mm outlet. Aggregate size: Up to 30mm

Jacon S30 $105,000 +GST

Specifications:

Factory fitted High pressure hydraulic water blaster. Pump: 125mm hard chromed concrete cylinders with 915mm stroke. Power unit: 4 cylinder Deutz diesel engine, 55KW @ 2200 RPM. Hydraulic pressure Max.: 250 BAR. Rated output: 30 m3/hr. Line pressure max. 70 Bar. Vertical reach: 80 metres. Horizontal reach: 250 metres. Aggregate size: Up to 19mm.

Finance options available Units Priced plus GST

Concrete Hoses, Clamps, Reducers, Bends and Spare parts available from our warehouse

Visit us for more Concrete pumps and Machinery.

psequipment.co.nz
