RAM Square 75mm VESA Base Plate with Swivel Arm and Tough-Claw
Description
RAM-2461-200-400 RAM(R) Screen / Tablet mount with swivel arm and Tough-Claw(TM) base
FEATURES
- Square plate includes the 75x 75mm VESA hole pattern for connection to a wide variety of devices
- C size 1.5" swivel arm and double socket arm with ball and socket technology allow for near-infinite adjustability
- Small version of the RAM(R) Tough-Claw(TM) base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16mm to 38mm diameter
- Rubber pads provide stable gripping and protection of mounting surface
- Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

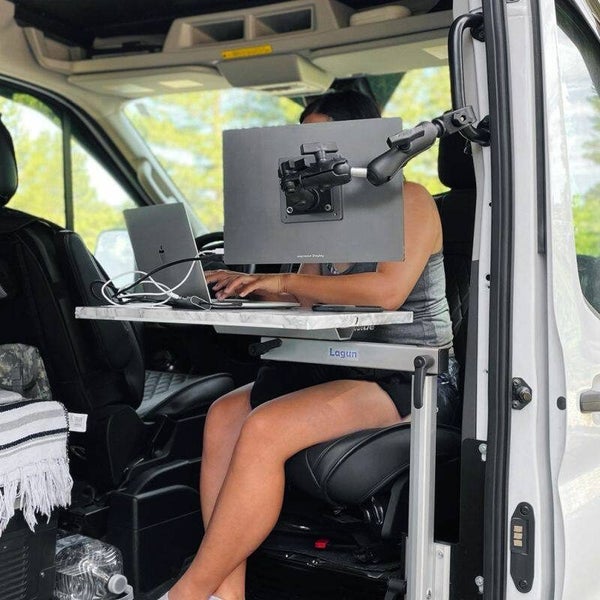

We have combined the RAM VESA plate for mounting screens and tablets with a base that can mount to virtually any bar or handle in your vehicle. The adjust-ability of the system allow you to move it beteen positions and the Tough-Claw can be installed or removed in seconds with no tools required.

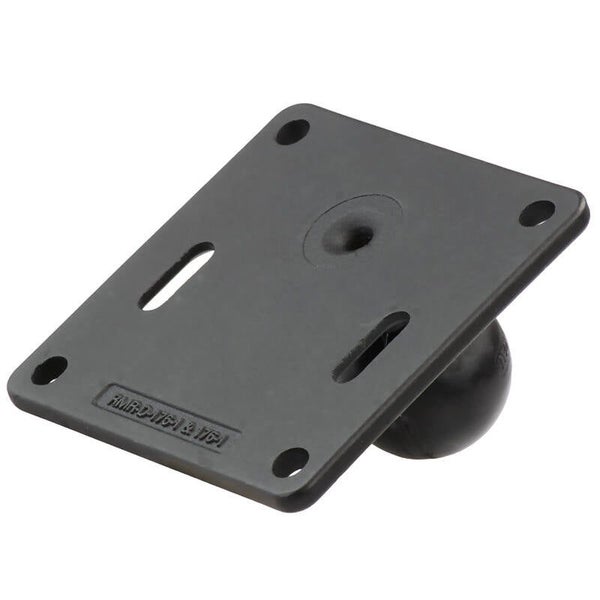

The VESA plate consists of a 1.5" rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88" from the centre of one edge.
The clamping base is a RAM Tough-Claw which is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 28 mm diameter.
Connecting the two are a medium double socket arm (143mm long), a double ball adaptor and a swivel arm

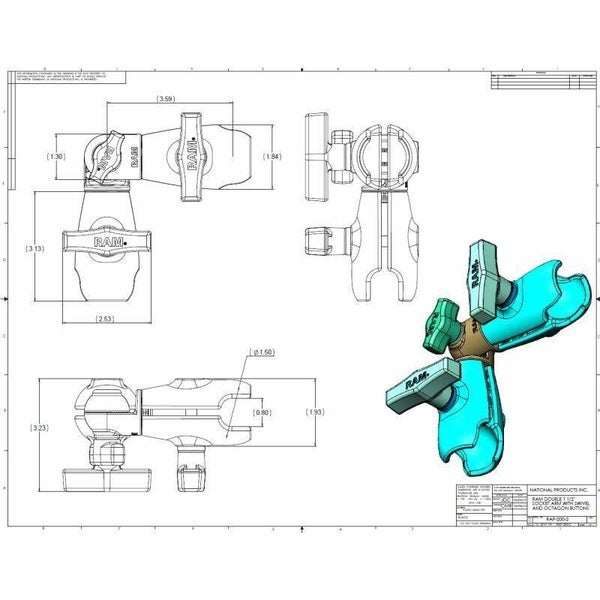

The Swivel Arm consists of double 1.5" diameter open ball sockets with a 360o rotation point at the centre and a connecting swivel joint that rotates forward and back 180o. The rubber ball and socket at either end, and a central pivot point provides unsurpassed adjust-ability.
Specs & Features
Swivel Arm Dimensions: Overall length 208mm (8.2") socket-to-socket length 182mm (7.16")
Tough-Claw Dimensions Rail/Tube Surfaces: 16mm to 28mm ...
