Rackstuds Series II 100-Pack Smart Rack Mounting System - Purple

Summary

RACKSTUDS Series II 100-pack Purple Smart Rack Mounting System is a universal replacement for cage nuts used to mount IT, Pro A/V, Security, and Teleco equipment in 19" racks. Designed for rails 2.7-3.2mm thick, it features longer studs for easier hanging with thicker gear ears, a new nut with a PZ2 screwdriver slot and finger flutes, and a redesigned shape for easier insertion. It offers over 30% improvement in leverage tests and fits thicker rails while remaining backwards compatible with current nuts and washers.

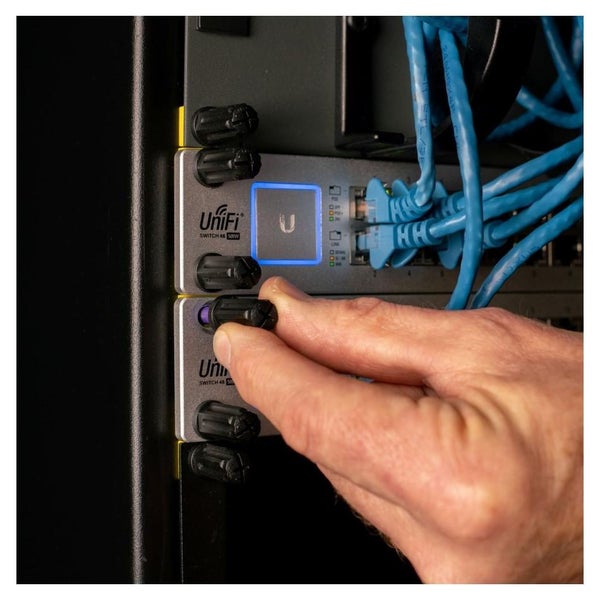

Rackstuds insert from the front and install in seconds without tools, allowing a typical network switch installation in under 55 seconds. Made from Grivory, a metal replacement thermoplastic, they hold equipment up to 20kg (44lbs) and are non-conductive, posing no electrical threat. The purple version fits thicker vertical rails found in open frames and is tested to work in Chatsworth and Hergo racks.

Features

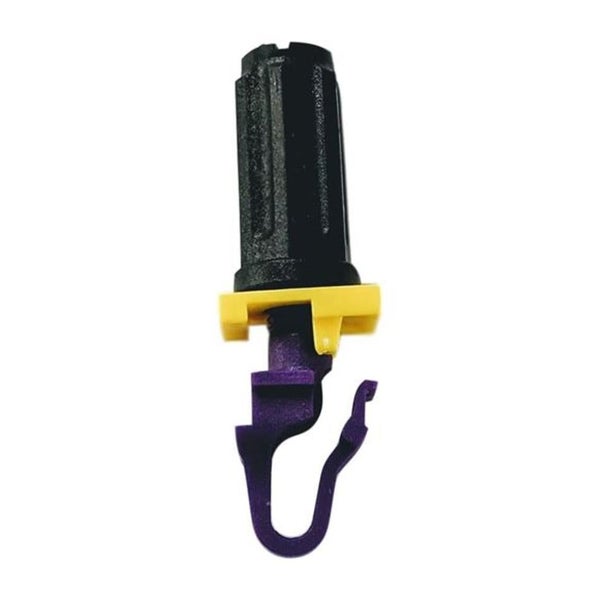

• Longer studs make hanging easier with thicker gear ears

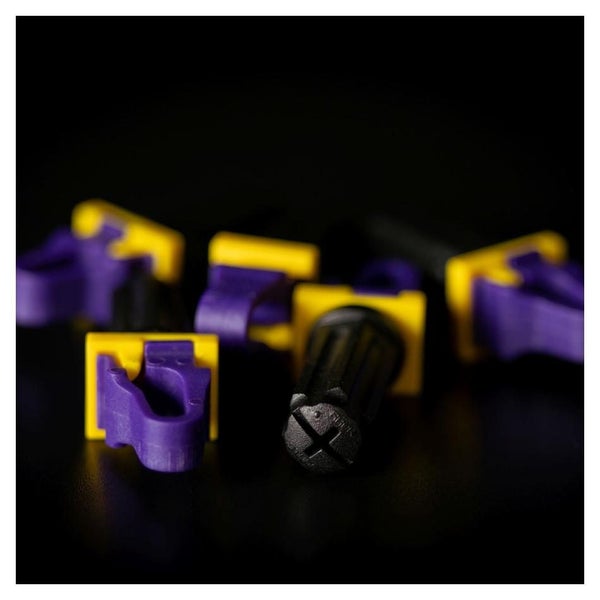

• New nut includes PZ2 screwdriver slot and finger flutes, maintaining M10 outside profile
• Redesigned for easier insertion
• Over 30% stronger in leverage tests
• Fits thicker rails than previous versions
• Backwards compatible with current nuts and washers
• Made from non-conductive reinforced thermoplastic (Grivory)
• Rated to hold equipment up to 20kg (44lbs)
• Colour-coded purple for easy identification
• Won't scratch equipment due to plastic construction
• Tool-free installation; tighten by hand
• Tested to work in Chatsworth and Hergo racks
• Available in two sizes; purple fits thicker vertical rails in open frames

Specifications

• Stud length: Longer than previous version
• Rail thickness compatibility: 2.7-3.2mm
• Material: Grivory reinforced thermoplastic
• Weight rating: Holds up to 20kg (44lbs)
• Yield test results:
• Push-in: 46 kgs (101 lbs)
• Pull out: 92 kgs (...
