Link Engine Management G4X StormX ECU

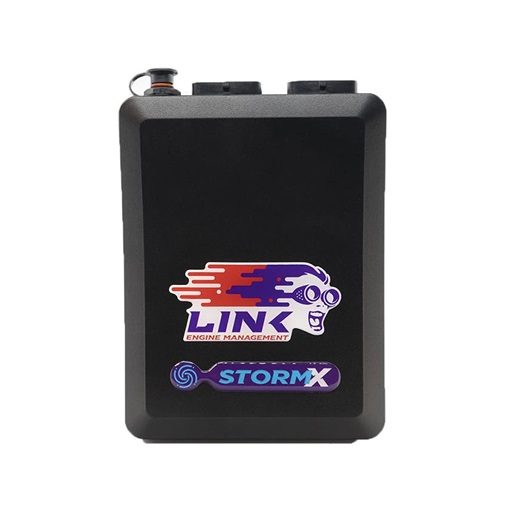

The Link G4X StormX ECU is the latest version of our trusty, mid-sized ECU. With eight injector and eight ignition drives, it allows sequential injection and direct spark on engines with up to eight cylinders or four rotors.

The StormX has all the upgrades of the AtomX and MonsoonX but offers more advanced tuning features like a built in Trigger Oscilloscope, Stepper Motor Idle Control, Rotary Oil Metering Pump Control, Onboard Knock Control, Open and Closed Loop Boost Control plus most Motorsport features including Full Gear Shift Control, Antilag and Launch Control.

• The loom's (sold separately) is AVSS automotive quality cable
• A fully extruded mounting plate is included
• Mounting hardware is completely hidden for a fully professional installation
• Waterproof automotive plugs
• (Requires "A" & "B" Looms)

Inputs

• 8 x Digital inputs
• 3 x Temperature inputs
• 8 x Analog inputs
• 2 x Trigger Inputs
• 2 x Knock Inputs

Outputs

• 8 x Injection drives
• 8 x Ignition drivers
• 8 x Auxiliary outputs^
• +5V Sensor power supply
• +8V Sensor power supply
• Unused fuel and ignition drives can be used as additional Aux outputs

Communications

• 1 x CAN bus
• 1 x USB tuning connection
• Upgraded communications chip (at least 8 x faster than G4+ V2)

Advanced features not found on the smaller Link ECUs (AtomX and MonsoonX):

• Built in trigger oscilloscope.
• Onboard Knock Control – support for two knock sensors wired directly to the ECU. No external amplifier required.
• Boost control can be open or closed loop with up to three switchable tables.
• Idle valve solenoid or stepper motor control.
• Rotary oil metering pump control.
• Most Motorsport features including full gear shift control, antilag and launch control
• Up to 4 fully variable closed loop VVT cams.
