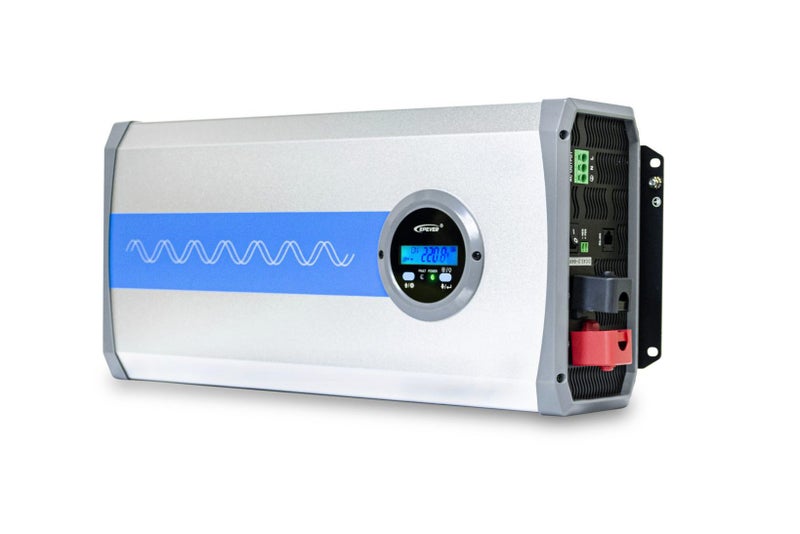

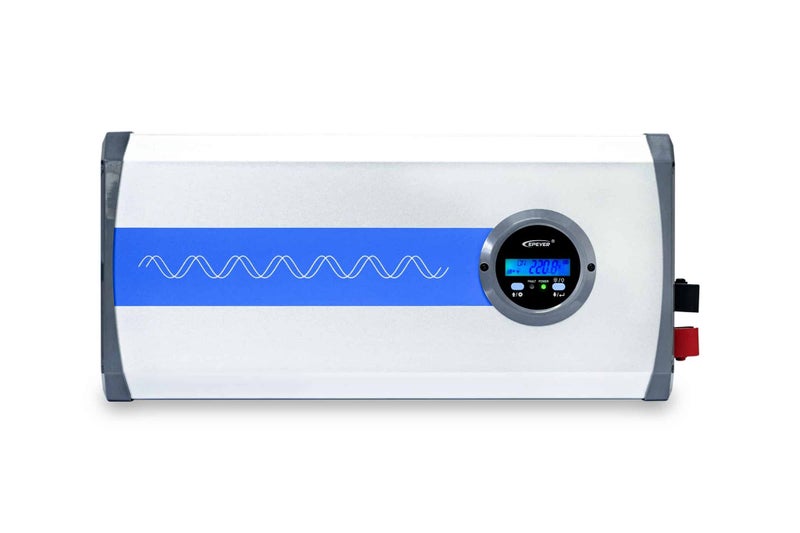

EPEVER IPower Plus 24V 3000W Pure Sine Wave Inverter IP3000-22-PLUS

EPEVER IPower Plus 24V 3000W Pure Sine Wave Inverter

Overview IPower Plus series Pure Sine Wave Inverter IPower-Plus is a high-frequency pure sine wave inverter which adopts digital intelligent control technology. The inverter brings lower inrush current of input, faster dynamic response, better impact resistance from load, more reliable of operation, also supports lithium batteries. This product fits any situation of DC to AC, such as RVs, boats, residen- tials, and places where require high quality of electrical power.

Features Pure sine wave output?Input to output electrical isolation?Digital dual closed-loop control of voltage and current?Input surge current suppression for lithium battery systems?Output power factor up to 1?Simple system wiring & 180 degrees rotating LCD?Input Protection: Reverse polarity, Low-voltage, Over-voltage Output Protection: Overload, Short circuit, Overheating?Phone and PC remote control through RS485 port?Extra external switch port?Safety (EN/IEC62109) & EMC approved by international standards

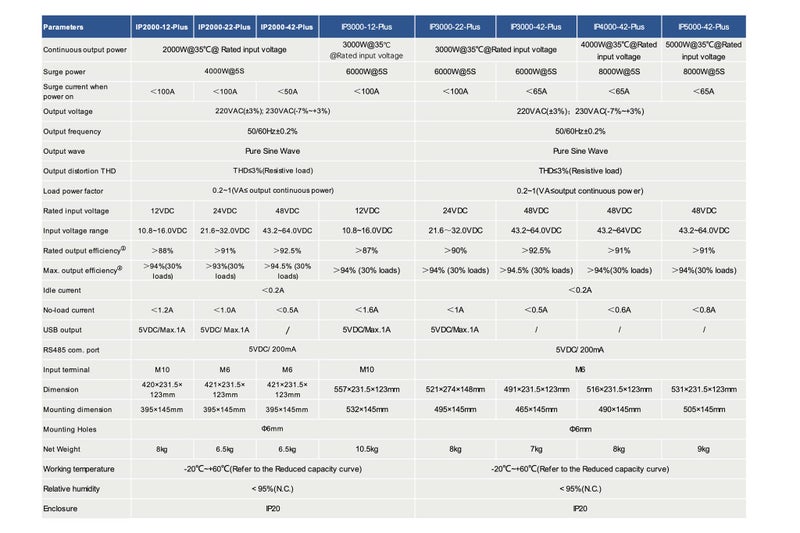

IP3000-22-PLUS Continuous output power: 3000W@35°C @Rated input voltage
Surge power: 6000W@5S Surge current when power on: <100A Output voltage: 220VAC(±3%); 230VAC(-7%- +3% ) Output frequency: 50/60Hz±0.2% Output wave: Pure Sine Wave Rated input voltage: 24VDC
Input voltage range: 21.6 - 32.0V DC
Rated output efficiency: >90%
Max. output efficiency: >94%(30% loads) No-load current: <1A USB output: 5VDC/Max.1A Input terminal: M6 Dimension: 521×274×148mm Net Weight: 8kg
