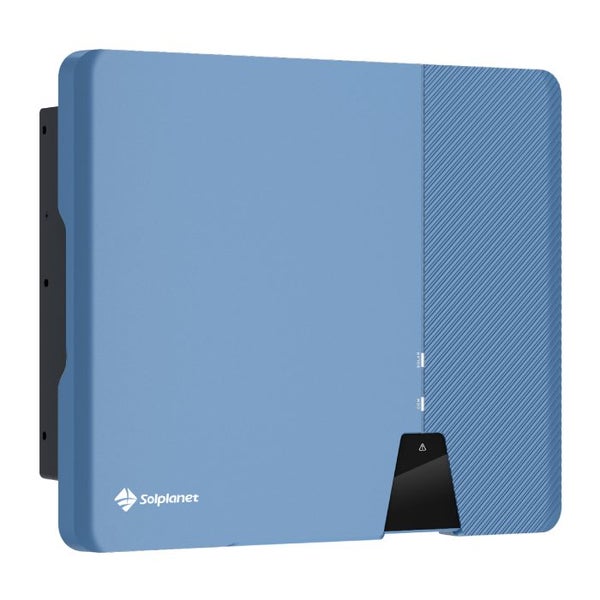

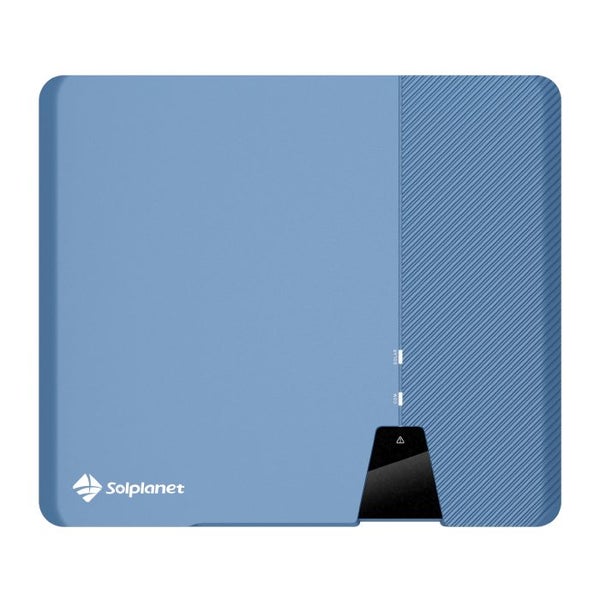

Solplanet ASW10000-S-A 10KW Single Phase String Inverter

Vector Approved Inverter 10-Year Warranty

ASW10000-S-A | 10kW | Single Phase | 3 MPPT | string Inverter Higher yields / Safe & Reliable / Smart / User-friendly

Easy-to-install Quick and easy to install with basic tools, featuring a compact wall-mount design and fast setup and commissioning via Solplanet apps. Reliable Built to international quality standards, featuring an integrated DC switch and an IP66-rated design for reliable outdoor performance. User-friendly Supports 16 A input current—ideal for bifacial and large-area PV modules—with 3 MPPTs for flexible array design and ShadeSol technology for enhanced performance in shaded conditions.

Technical Datasheet Input (DC) Max. PV array power: 15000 Wp STC Max. input voltage: 600V MPP voltage range / rated input voltage: 80 V - 560 V / 360 V Min. input voltage: 80 V Initial. feed in voltage: 100 V Max. operating input current: 16A Max. short circuit current: 22.5A No. of independent MPPT inputs / strings per MPPT input: 3/1

Output (AC) Rated active power: 10000W Rated apparent power: 10000VA Max. apparent power: 10000VA AC nominal voltage: 220V/230V/240V AC voltage range: 180V to 295V AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz Max. output current: 50A Adjustable power factor range: 0.8 leading to 0.8 lagging Feed-in phases: 1 Harmonic distortion (THD) at rated output: < 3%

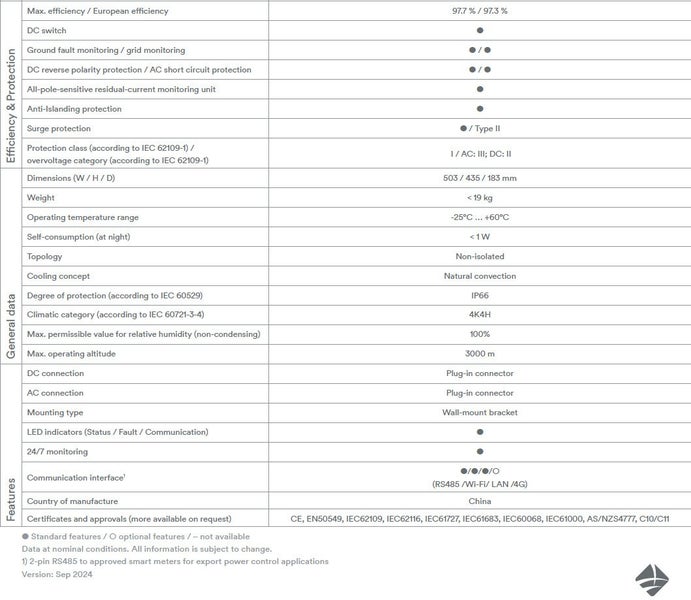

General data Dimensions (W / H / D): 503 / 435 / 183 mm Weight: <19kg Self-consumption (at night): <1W Topology: Non-isolated Cooling concept: Natural convection Degree of protection (according to IEC 60529): IP66 Climatic category (according to IEC 60721-3-4): 4K4H Max. permissible value for relative humidity (non-condensing): 100% Max. operating altitude: 3000m

Features DC connection: Plug-in connector AC connection: Plug-in connector Mounting type: Wall-mount bracket
