2025 Growatt 13KWH 48V 5KW Off-Grid Solar Kit with Carbon Battery

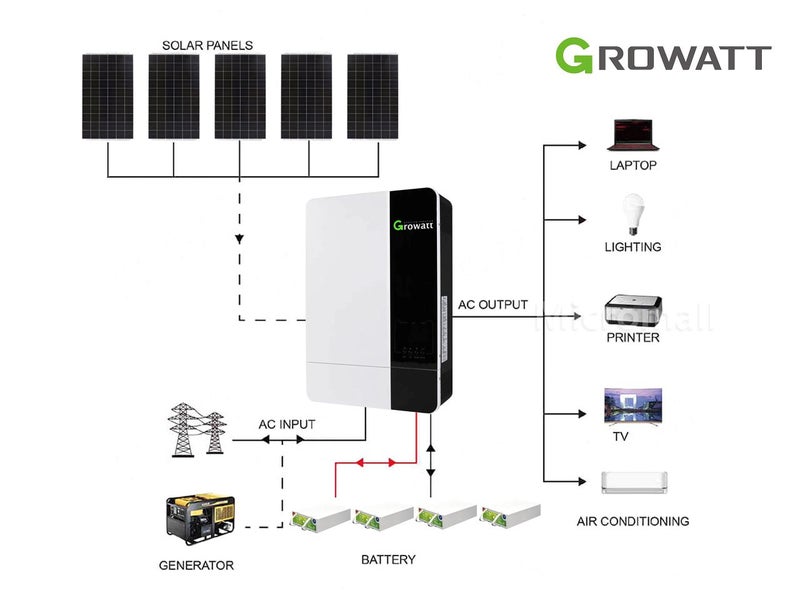

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

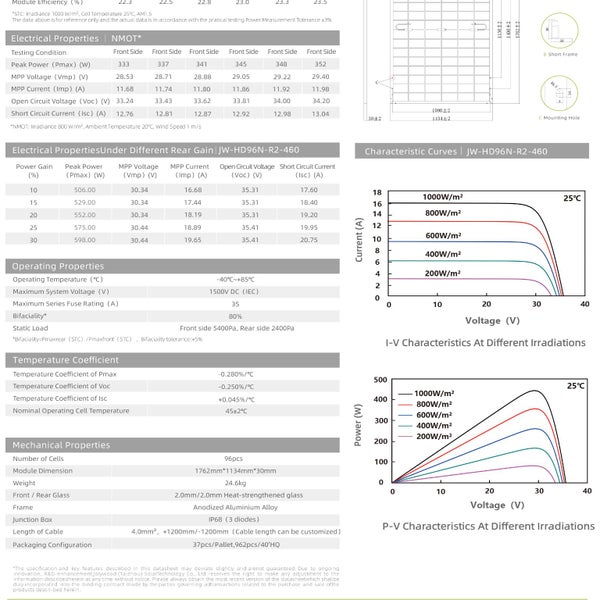

Package includes: 5 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell 1 x GROWATT SPF 5000ES 48V 5000W HYBRID Charger Inverter (2 years warranty) 4 x 12V 130Ah Ultra Lead Carbon Batteries (2 Years Warranty) 1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors 1 x 2-in-1 MC4 Connectors 1 x PV 16a Fuse 1 x PV Circuit Breaker 500v 25a 1 x Surge 1 x Isolator 5 x Solar Panel Mounting Kits Z Brackets Upgrading from Mounting Kits to Mounting Rails is $150. If you wish to upgrade, please contact us.

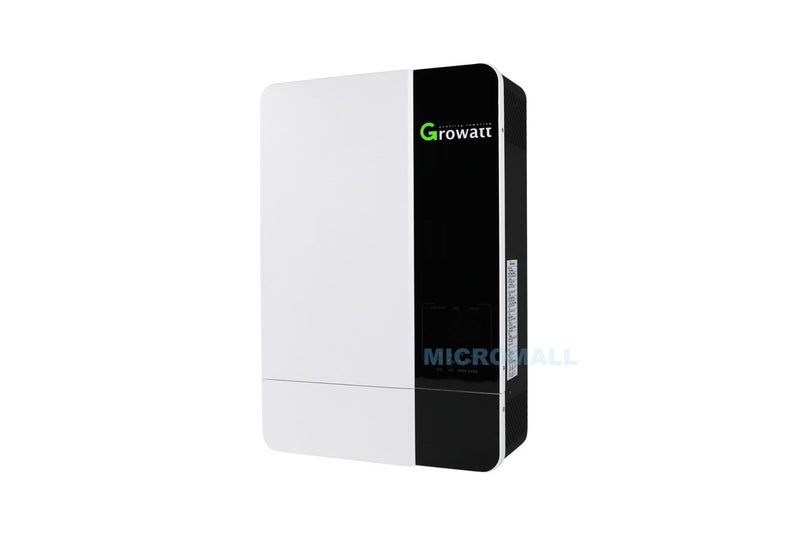

The Growatt SPF 5000 ES is an off-grid inverter. It is suitable for a maximum circuit voltage of 450VDC. The inverter can be used with batteries, but can also work without. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where for example charging from the grid can be preferred overcharging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS dongle.

Technical Data Model: Growatt SPF 5000 ES Battery Voltage: 48VDC Battery Type: Lithium/Lead-acid/AGM/GEL Rated Power: 5000VA/5000W Parallel Capability: Yes, 6 units maximum Waveform: Pure sine wave Maximum PV Array Power: 6000W MPPT Range @ Operating Voltage: 120VDC ~ 430VDC Maximum PV Array Open Circuit Voltage: 450VDC Maximum Solar Charge Current: 100A AC Charge Current: 80A Dimensions: 330x485x135mm Weight: 12kg

Daily Output 13KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons. Fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance (latest NZ 2015 spec requirements). SAA NZ Certificated Inverter
