South Island Trailers 10x5 Hydraulic Tipper

South Island Trailers 10x5 Electric Hydraulic Tipper.

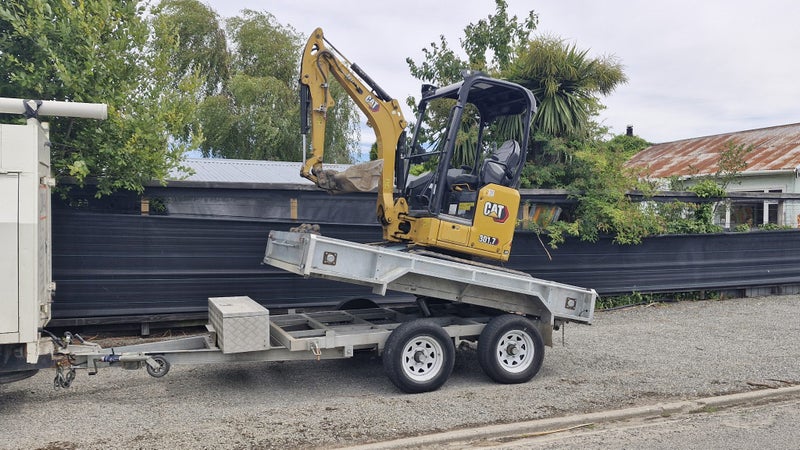

First photo with digger is 5 years old used by a drainage company.

4 Wheel Electric Brakes Better than cable brakes that most other trailers in this price range have. Comes with a drawbar controller wired in properly.

195 75 R15 Wheels 950kg Rating 3.8t total Each Axle 2.5t rated 5t per pair

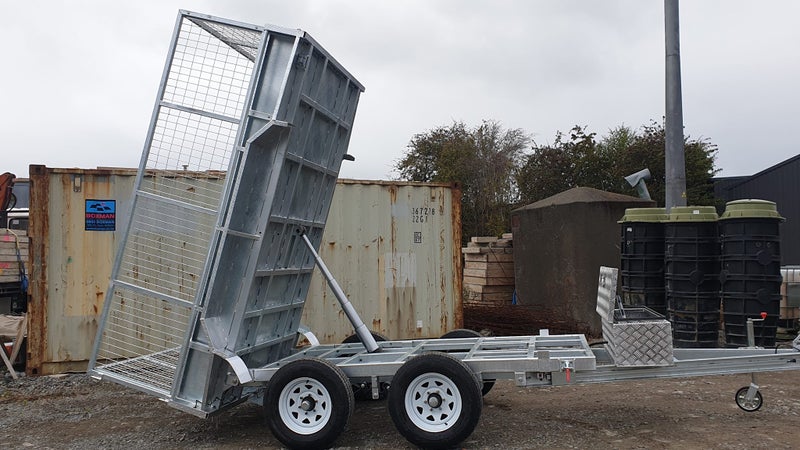

About a 65deg tip angle huge ram with plenty of stroke, Have seen these trailers with 4t being tipped off, axles were only at their max not overloaded like other trailers.

4 stage ram 50mm Coupling

3500kg Chassis/ Springs/ Axles

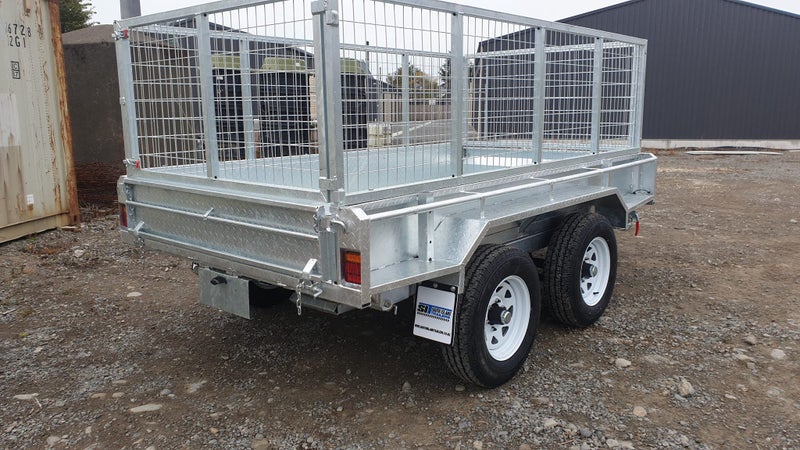

425mm sides with a 900mm cage 6cube 300mm sides in the photo

120 amp hour Deep Cycle battery

Top Swing Rear Door, Or easy to remove

Grease Points on all moving parts

Tie Rails on all sides

Comes with a draw bar controller rated to 2500kg, can upgrade it to 3500kg with an incab controller.

Extras

3500kg incab controller +$650approx Spare Wheel $200 Wof and Rego $170 1 7/8 coupling $125 Ramps $250 About us

South Island Trailers

Southislandtrailers.co.nz

We specialise in custom built and imported trailers. Based in Christchurch, New Zealand we guarantee to provide the best trailer solution for your requirements - be it a large flat deck trailer or a simple single axle garden trailer. South Island Trailers is dedicated to providing well-built, long-lasting trailers, We are not interested in importing the cheapest trailers we can find like so many. We assemble our own trailers.

With over 10 years experience in trucks and trailers and with certification and tickets in welding / engineering, we can ensure a positive outcome to the purchase and ongoing reliability for your new trailer.
