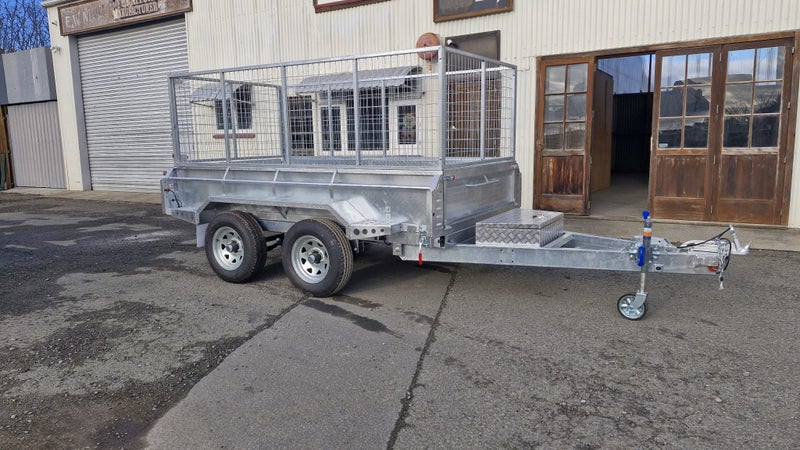

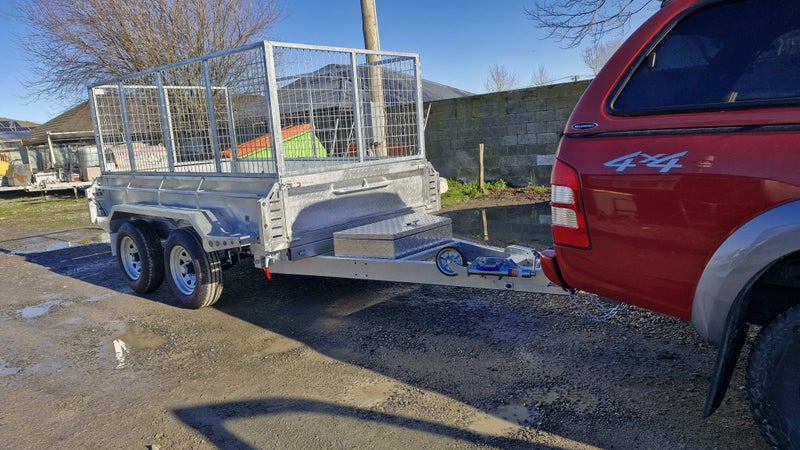

10x5 Hydraulic Tip Trailer

South Island Trailers Hydraulic tip trailer

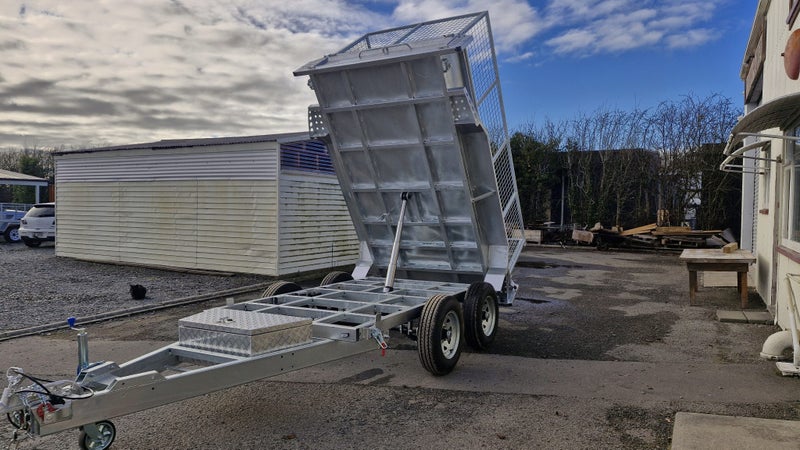

Built for serious work, this heavy-duty 10x5 Hydraulic Tip Trailer takes the hassle out of unloading soil, gravel, and bulk materials on-site. Featuring a 5-tonne 5-stage hydraulic tipping cylinder, full electric brakes on all four wheels, and a fully welded, hot-dip galvanised chassis, it’s engineered for maximum performance and reliability. With a 60° tip angle, heavy-duty rocker-roller suspension, and a checker-plate floor, it’s ideal for landscapers, builders, and farmers shifting everything from soil and rubble to firewood and machinery. The 600 or 900mm cage and recessed aluminium toolbox come standard, while optional extras like wireless tipping control, alloy ramps, and canvas covers let you customise it for the job. Tough, dependable, and road-ready—this trailer works as hard as you do

Features: Shackle & chain 3.5T rated 3.5T coupling-Bigger bearings 2.5T each axle 7 pinplug Jockey wheel 150x50 drawbar Tool box recessed Gas strut Bigger pump & battery Go up faster, more tips 4 stage hydraulic ram 5ton lift 4-wheel braking 15” galvanised wheel no rust-Each tyre 950kg Conduit covered wiring 60 deg tilt-Manual drop Won’t be stuck in the air Specs GVM: 2500kg/3500kg Tare: 1188kg(Exclude cage)
Capacity: 2312kg
Internal Trailer Size: 3040mm x 1530mm x 425mm
Drawbar: 1900mm, 150mm x 50 x 5mm RHS
Hot Dipped Galvanised
Fully Welded Body & Chassis Removable Front & Rear Drop Down Gates
105 AMP Deep Cycle Battery System
5T Hydraulic Cylinder with Hydraulic Power pack
Flooring: Checker Plate Floor Tie Down Rails Axle: Dual Axle, 50mm Round Solid Axle 2500kg each axle
Brake: 12” Electric Drum On Four Wheels
Springs: 60mm 7 Leaf 7mm Rocker Roller
Wheel Size: 15?
Tyre Size: 195/R15C
Coupling: 50mm 3500kg
Jockey Wheel: 8” Swing up
Tool Box: Aluminium
Light: 12V-24V, LED
Plug: 7 Pin, Flat
