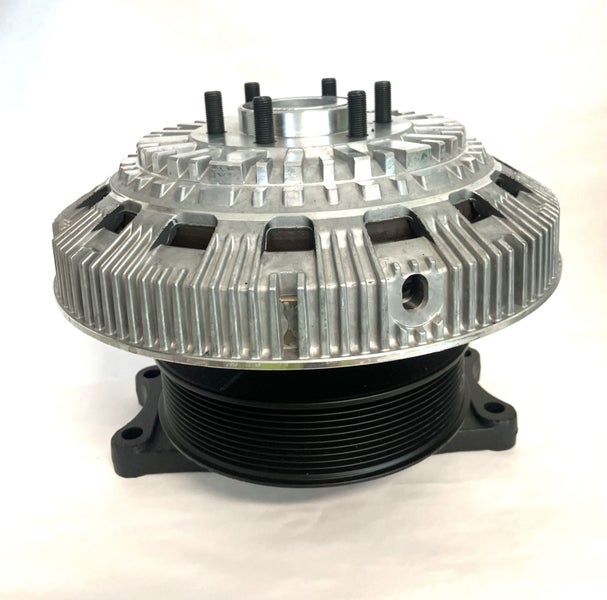

Freightliner Cascadia 2Speed Fan Clutch DM Advantage - 99A9737

2Speed Fan Clutch for 2010-2016 Freightliner Cascadia. DM Advantage Two-Speed Fan Drives alternate between eddy current and spring-actuated cooling. While using eddy current, the fan drive turns the fan at a lower speed, which reduces operating noise, increases available horsepower for auxiliary systems and minimizes radiator abrasion from dust and debris. Its spring-actuates when more cooling is needed, running the fan at full input speed. It also provides faster engine warm-up in cold weather.

A - Back Pulley Diameter: 200 mm B - Length: 320 mm C - Face to Belt Groove Length: 168.9 mm D - Bolt Circle Diameter: 88.9 mm E - Fan Pilot Diameter: 65.02 mm F - Stud Length: 26.6 mm F1 - Stud Thread Size: 0.375-24 UNF G - Vertical Mounting Distance: 63.91 mm H - Horizontal Mounting Distance: 161.5 mm J - Journal Centre to Top Mounting Hole Length: 63.91 mm
