Digital Paint Coating Thickness Gauge Instrument Tool Diagnostic CM-8828

Detailed Product Description

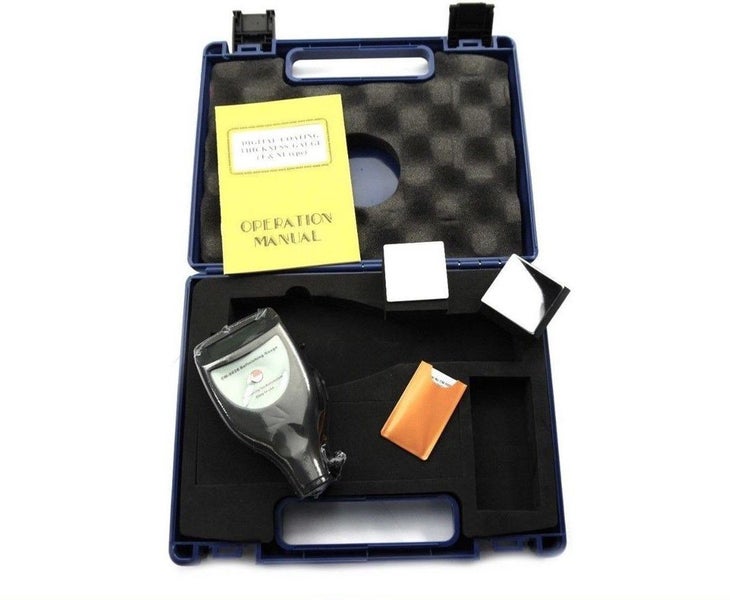

Product Name: CM-8828 Coating Thickness Gauge Calibration Block: Included

Resolution: 0.1/1 Accuracy: 1-3%n Or 2.5um

Measuring Range: 0-1250um/0-50mil Usage: Coating Thickness Testing Gauge

Probe: Built-in F&NF Type Optional Accessory: USB, RS-232 Data Cable With Software

Power: Electronic

Coating Thickness Meter CM-8828 NDT instruments, CM8828 paint thickness tester, auto paint thickness meter

Applications:

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Features:

• Two measuring methods: magnetic induction (F) and eddy current (N)
• Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the

coating thickness of curved objects and tiny objects.)

• Metric/imperial system selectable.
• Manual or automatic shut down.
• Auto memory of calibration value,and auto recognize the substrate.
• Operation process have buzzing reminder,while no buzzing in continuous mode.
• Use "USB data output" and "RS-232 data output" to connect with PC.
• Provide "Bluetooth (TM) data output" choice.
• One key operation, fast and convenient.

Operating Principle Magnetic Induction / Eddy Current (F / NF)

Measuring Range 01250 um / 050 mil

Resolution 0.1 um / 1 um

Min. Radius Workpiece F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm

Min. Measuring Area 6 mm

Min. Sample Thickn...
