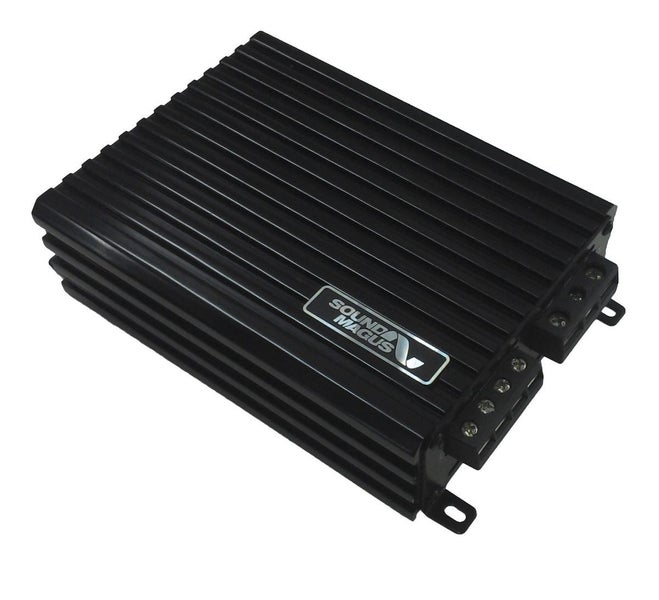

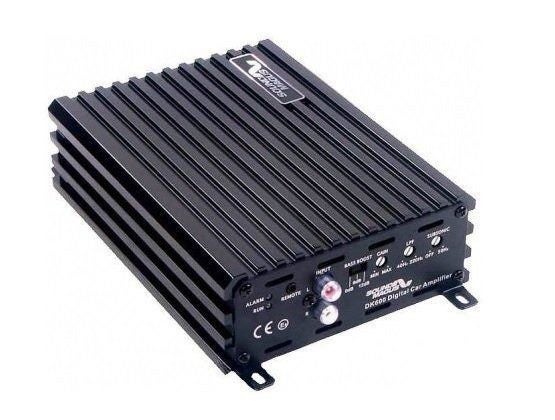

Soundmagus DK600 Class-D Amplifier 400RMS

http://www.omins.info/jonvy/p/689/

Features:

CLASS D MONO BASS CAR AMPLIFIER

600W x 1RMS (2 OHM, 14.4V) 400W x 1RMS (4 OHM, 14.4V)

2 ohm load stable Double Side PCB and SMD components Adjustable Input level, LPF, Subsonic function Advanced short circuit, overload, over heat and low voltage protection Heavy duty terminals. Optional remote controller.

Specification: Input Level:0.2-5 V Frequency Response:10-220 Hz LPF:40-220 Hz SubSonic Filter (HPF):10-50 Hz THD at 4Ohm load 30% Rated Power:<0.3% S/N Ratio:>80dB BassBoost:0-6dB-12dB switchable Best Efficiency @4ohm:>80% Minimum Load:2 Ohm Optional Remote:YES Low voltage protection:Yes, protect <8 V ShortCircuit Test @ max power:Pass Overheat protect temperature:Protect at 80/176F Components & PCB:SMD parts/double side FR-4 pcb

Dimension(mm) 184(Length)×140(Width)×54(Height)
