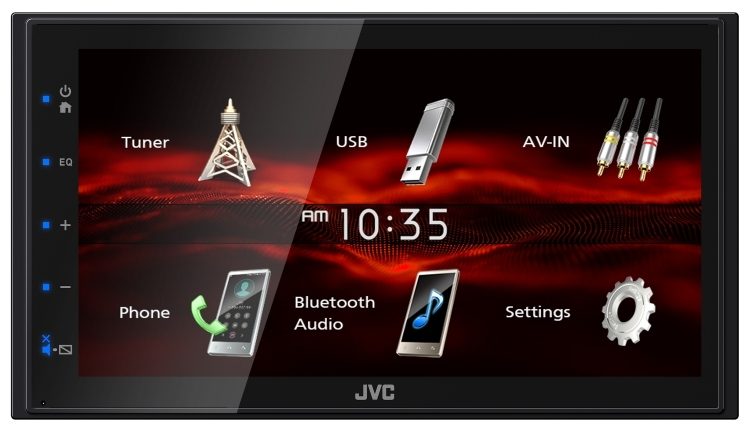

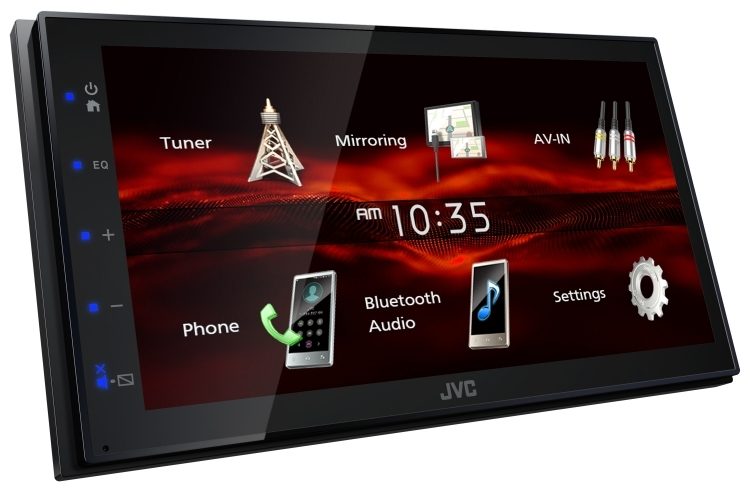

JVC KW-M180BT 6.8" WVGA Monitor / USB Mirroring / Bluetooth® / Short Chassis

http://www.omins.info/jonvy/p/11649/

JVC KW-M180BT 6.8" WVGA Monitor / USB Mirroring for Android™ / Bluetooth® / Short Chassis

Features

• Mechless Unit (No CD/DVD Player)
• 6.8" Wide VGA Capacitive Touch Screen Display
• USB Mirroring (Android Only)
• Fast Bootup feature ensuring ready to use shortly after powering on
• Built-in Bluetooth v4.2 (with Audio Streaming)
• External Microphone Included (3.5mm)
• Rear 1.5 amp USB Input ( iPhone/Android Compatible )
• Rear Audio/Video RCA Input (use AUX2 for 3.5mm audio input)
• Full HD Video Playback
• MP3/WMA/WAV/AAC/FLAC/H.264/MPEG 1,2,4/MKV Playback Compatible
• AM/FM Radio Tuner with RDS
• Key Illumination
• 13-Band EQ
• Bass Boost and Loudness
• Digital Time Alignment (DTA)
• Subwoofer Control
• Brightness Control
• Shallow Chassis Design (only 75mm)
• RCA 2 Volt Outputs (Front L/R + Rear L/R + Subwoofer Mono)
• Rear Reverse Camera Input
• Rear Video Output
• Includes outer trim piece ( 186mm x 117mm outer dimensions )
• Rear Wired Remote Input
  • with Learning Function
  • see HERE for some common vehicle SWC positions

Specifications

• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,611 kHz (NZ frequency)
• Speaker Output: 45W x 4 (4O)
• Speaker Impedance: 4O (4-8O acceptable)

Size

• Standard Double Din Size
• Width: 178mm
• Height: 100mm
• Depth: 75mm

*** Installation *** We provide installation services, please ask for a free quote.

One Year RTB Warranty
