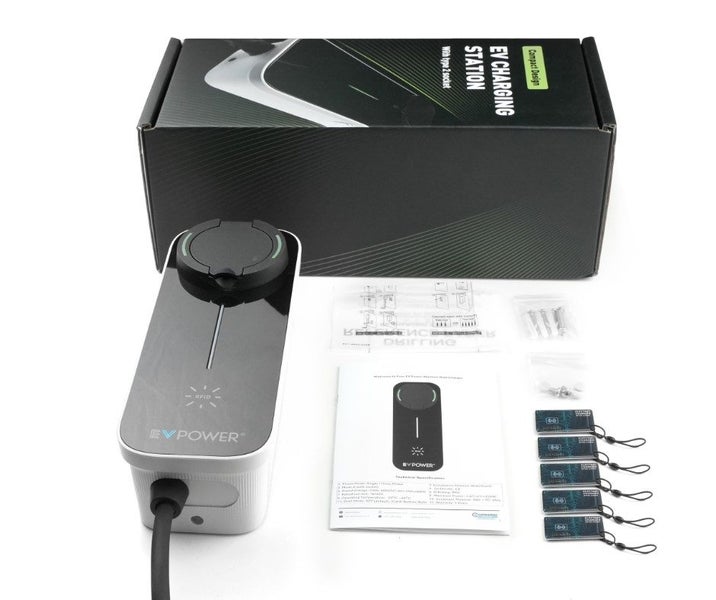

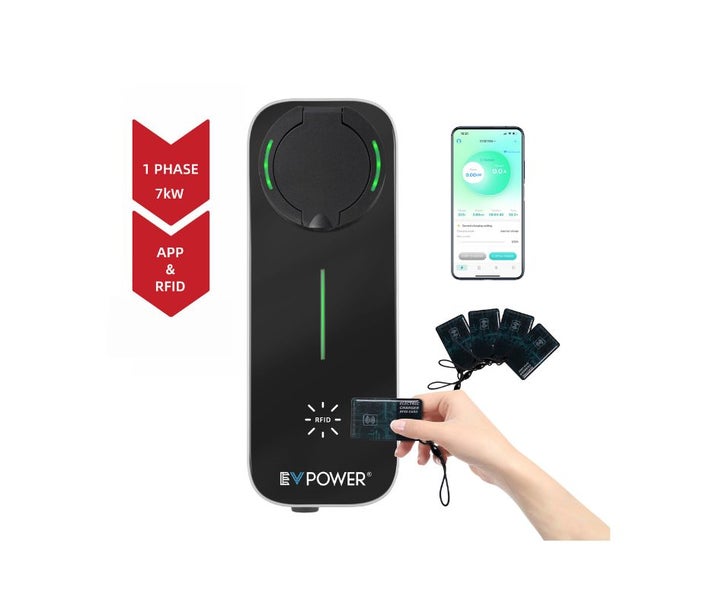

SlimLine Smart 7kW 1P Wall Charger (32A) RFID

Modern design. Reliable performance. NZ-ready. Don t let the price fool you these units are seriously capable. Reliable charging up to 7.2kW via a Type 2 socket.

• Homes.
• Businesses.
• Single-phase setup.
• Three-phase charging version available. Key Features:

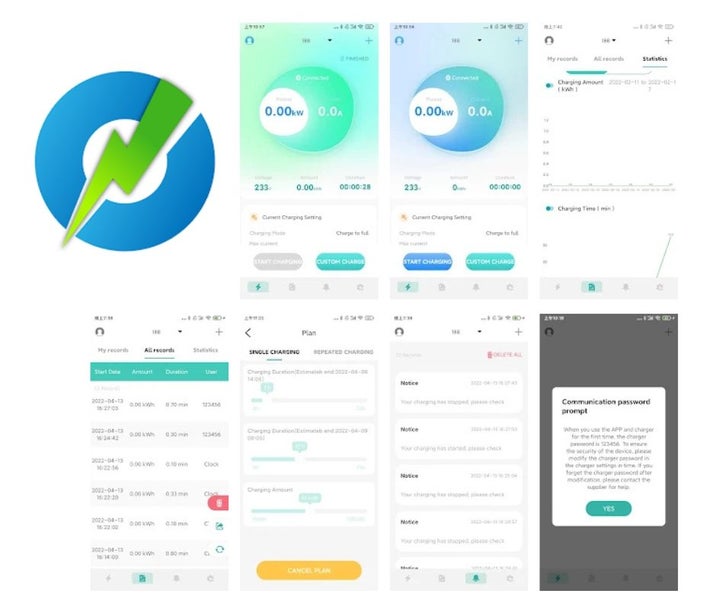

• Connect effortlessly via the Bluetooth-linked app.
• Schedule charging, adjust current, or monitor status.
• RFID card support is built in for simple tap-and-go charging ideal for shared driveways or staff use.
• Includes 6mA DC Detection
• No requirement for RCD Type B at installation. Makes for a quick and cost-effective install.
• EVSE Master App click here.
• RFID swipe card security. Note: Electrician will need to wire in an isolation switch and supply RCBO at your switch board. Specifications:
• 12 cm W x 10/8.7 cm D x 32.5 cm H
• 2.5 kg
• Input: 230V (1P), 50Hz
• Output Power: 3.6kW / 7.2kW (1P)
• 6ma DC detection in built, approved alternative to RCD type B
• Max Current: 32A model
• Charging Mode: Mode 3 (IEC 61851-1)
• Start Methods: App / RFID Card / Button / Auto
• Protection: Type A RCD + 6mA DC detection built-in (IEC 62955)
• Connectivity: Bluetooth (default) Can be made plug-and-play on demand
• Enclosure: ABS + PC alloy, IP66 rated
• Operating Temp: -25 C to +40 C
• Mounting: Wall or optional stand
• Plug Type: Universal Type 2 (socketed)
• App is named EVSE Master
• Fully compliant with AS/NZS 3000 and IEC 61851
• Sleek wall-mounted design (IP66 rated for NZ weather) Warranty: Full 3-year NZ warranty and local support.
